Technical Features

• Technical features 1st stage
• Hyperbalanced diaphragm (watertight chamber on t10-sc)
• 2 hp 7/16 unf ports
• 4 mp 3/8 unf ports

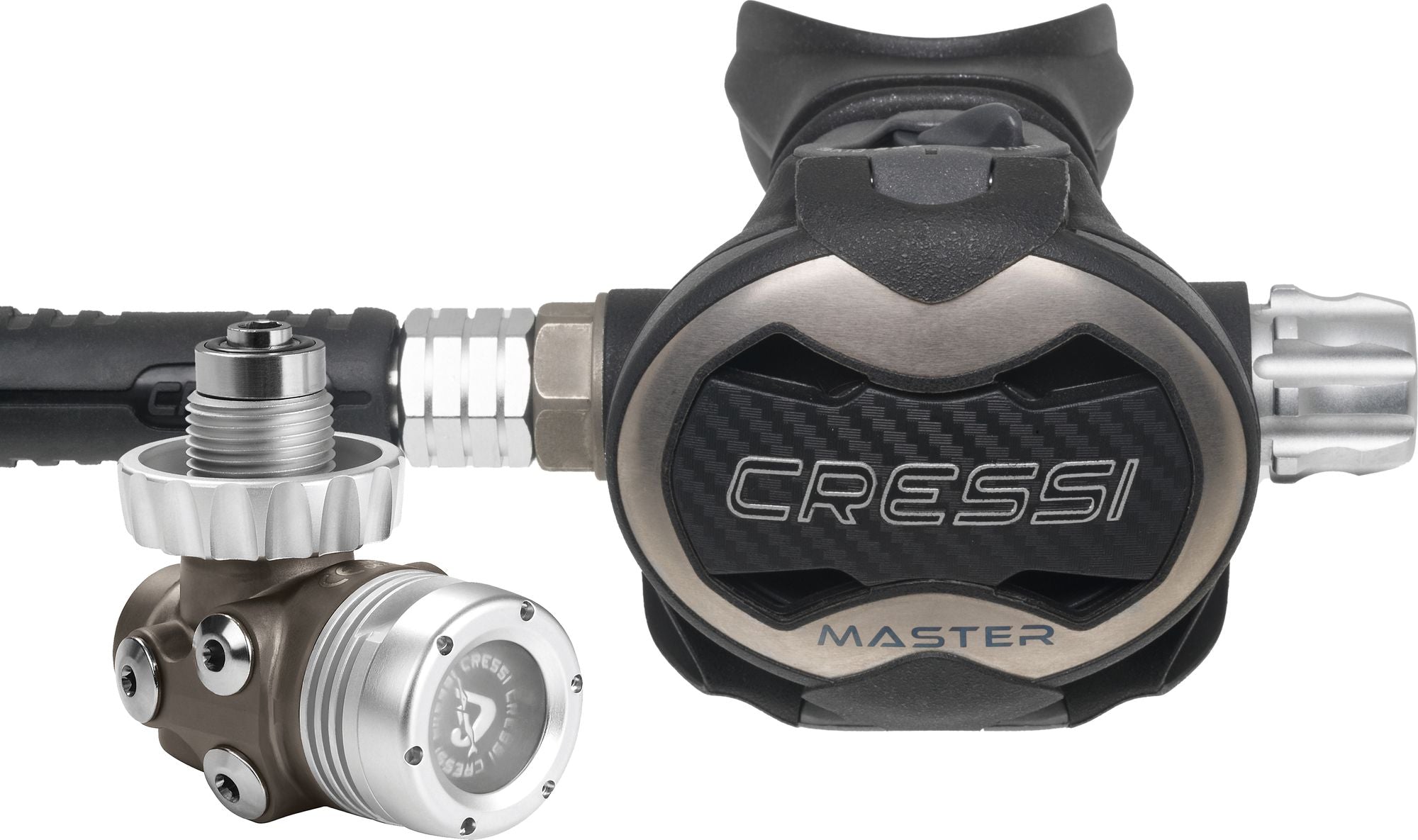

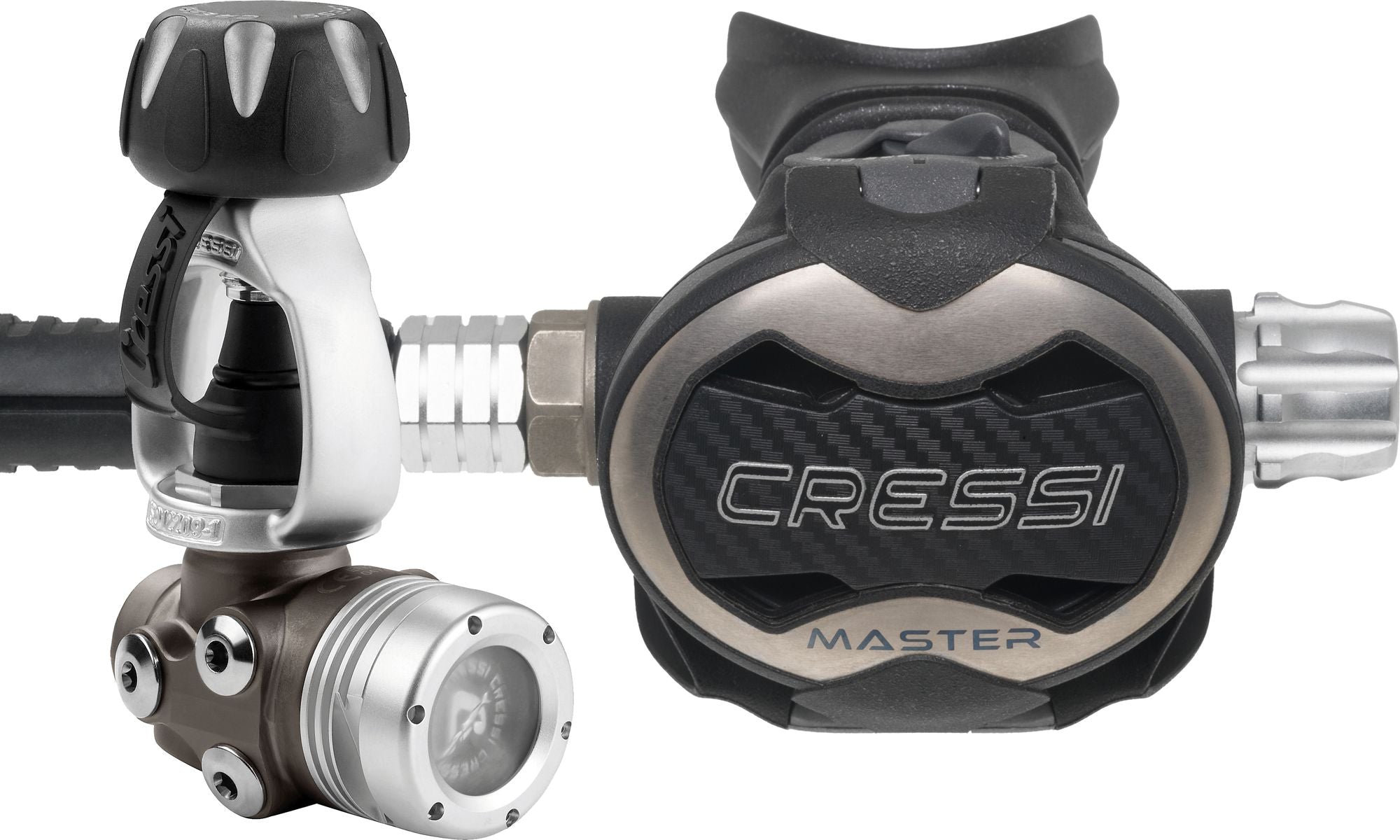

• Operating pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) international version
• Calibration pressure: 10 bar
• Body coated with pvd process
• High-capacity conical fi lter in chemically nickel-plated spherical bronze
• Removable nozzle in aisi 316 steel
• Hyperbalancing system
• Anti-pressure drop pneumatic spring
• Stainless steel calibration spring with micropeening treatment
• Low-friction technopolymer slider shaft
• Body protection in polyurethane thermoplastic
• Quantity of air supplied: 4500 l/min
• Weight, int version: 720 gr
• Weight, din version: 602 gr
• Technical features 2nd stage
• Pneumatically balanced
• Adjustable venturi
• Adjustable inhalation effort
• Patented elliptical diaphragm
• Patented low-friction lever
• Air delivery system without injector
• Adjuster knob coated with pvd process with dual or
• Laser-etched titanium front piece
• Internal heat exchanger
• Cap opening with cam-lock
• Noise-absorbing technopolymer body
• Removable technopolymer defl ector
• Removable mechanics
• Weight without hose: 207 gr
• Combination performance
• Average cracking effort 3.5 mbar
• Average breathing effort 0.6 j/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 for cold waters
