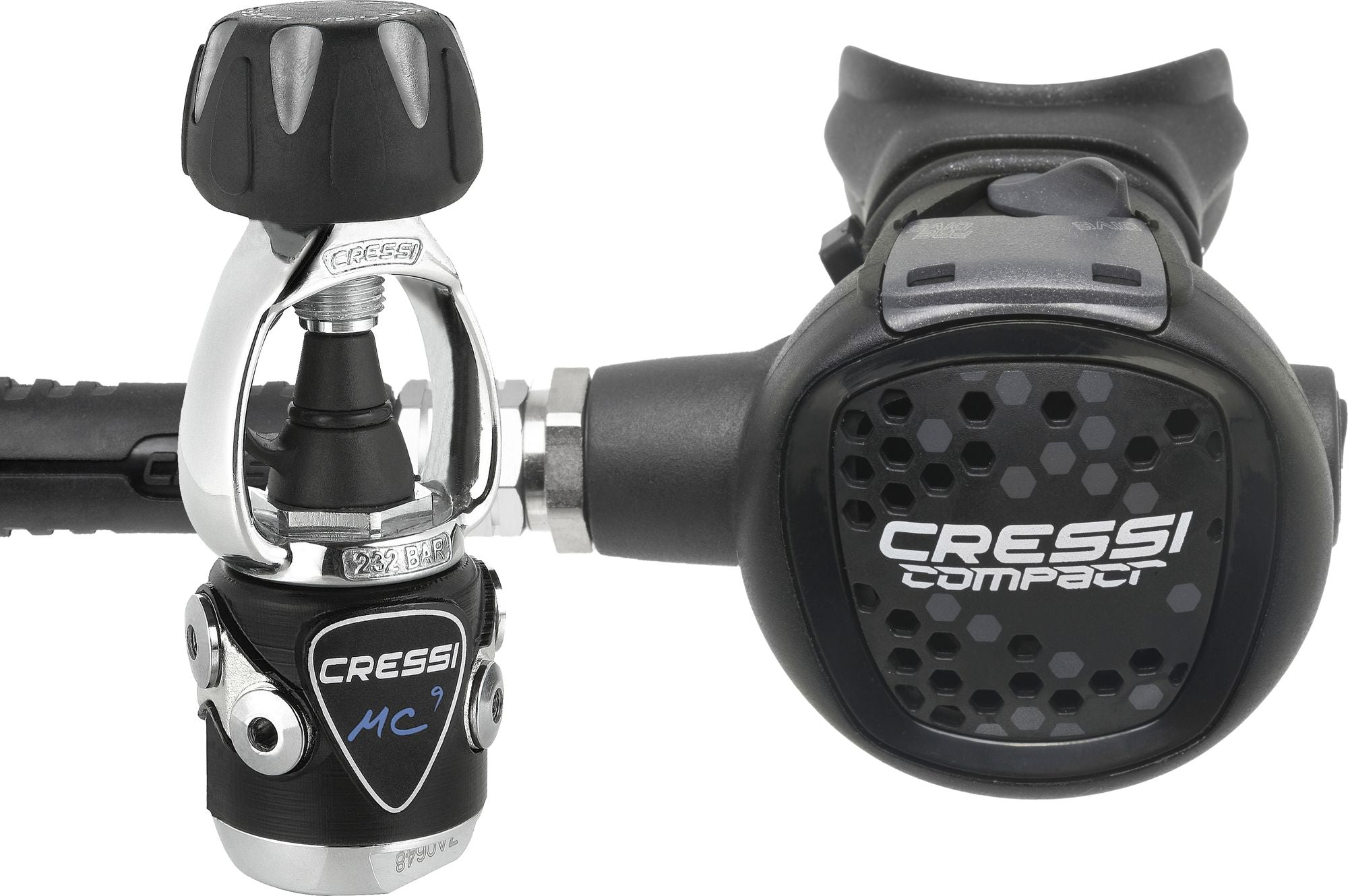

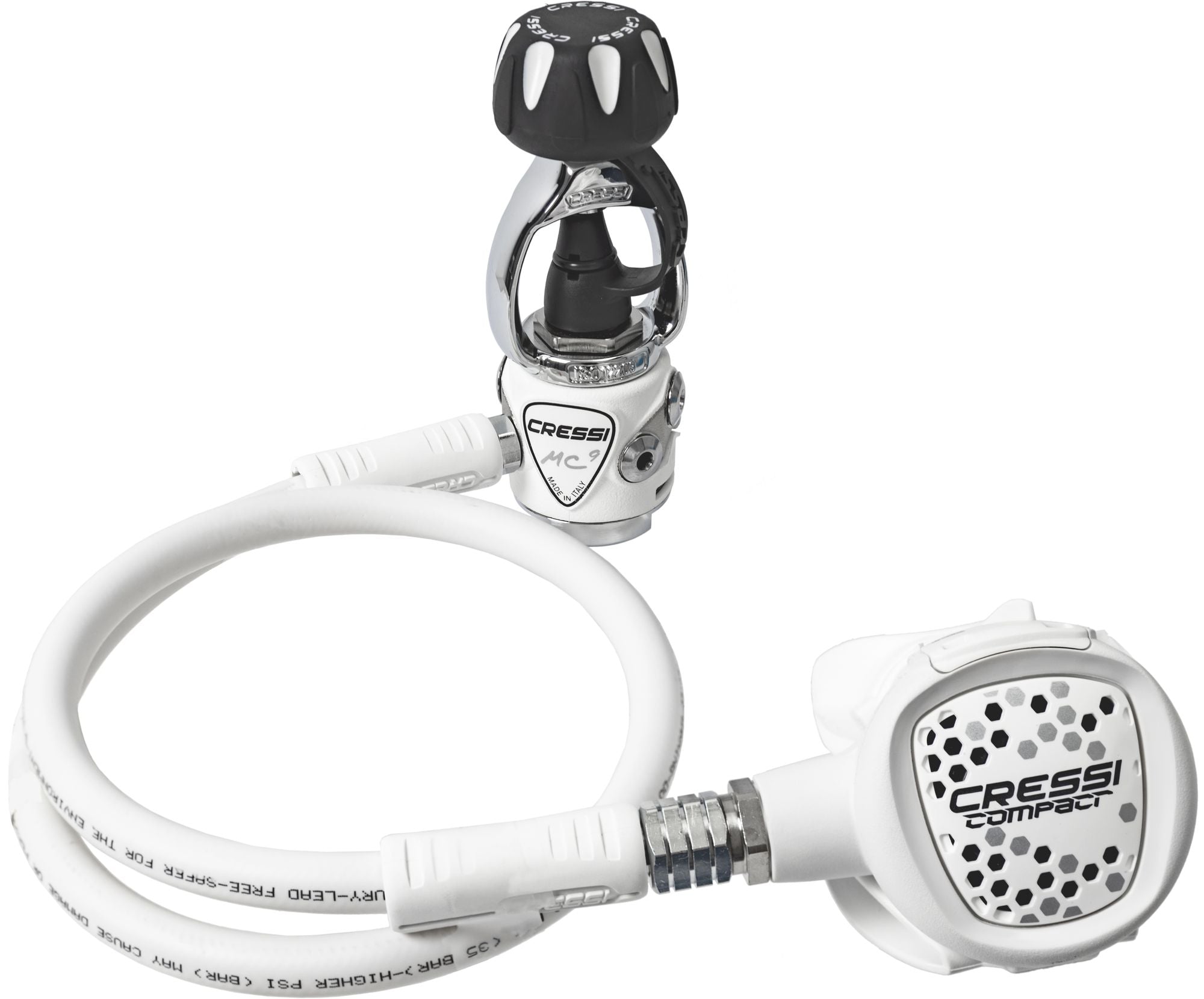

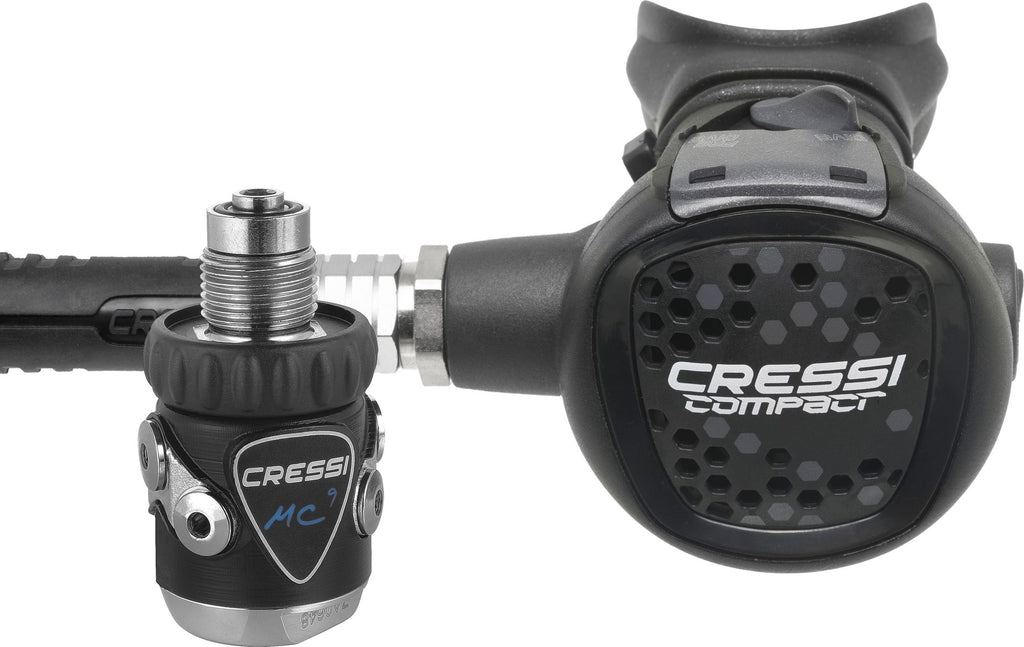

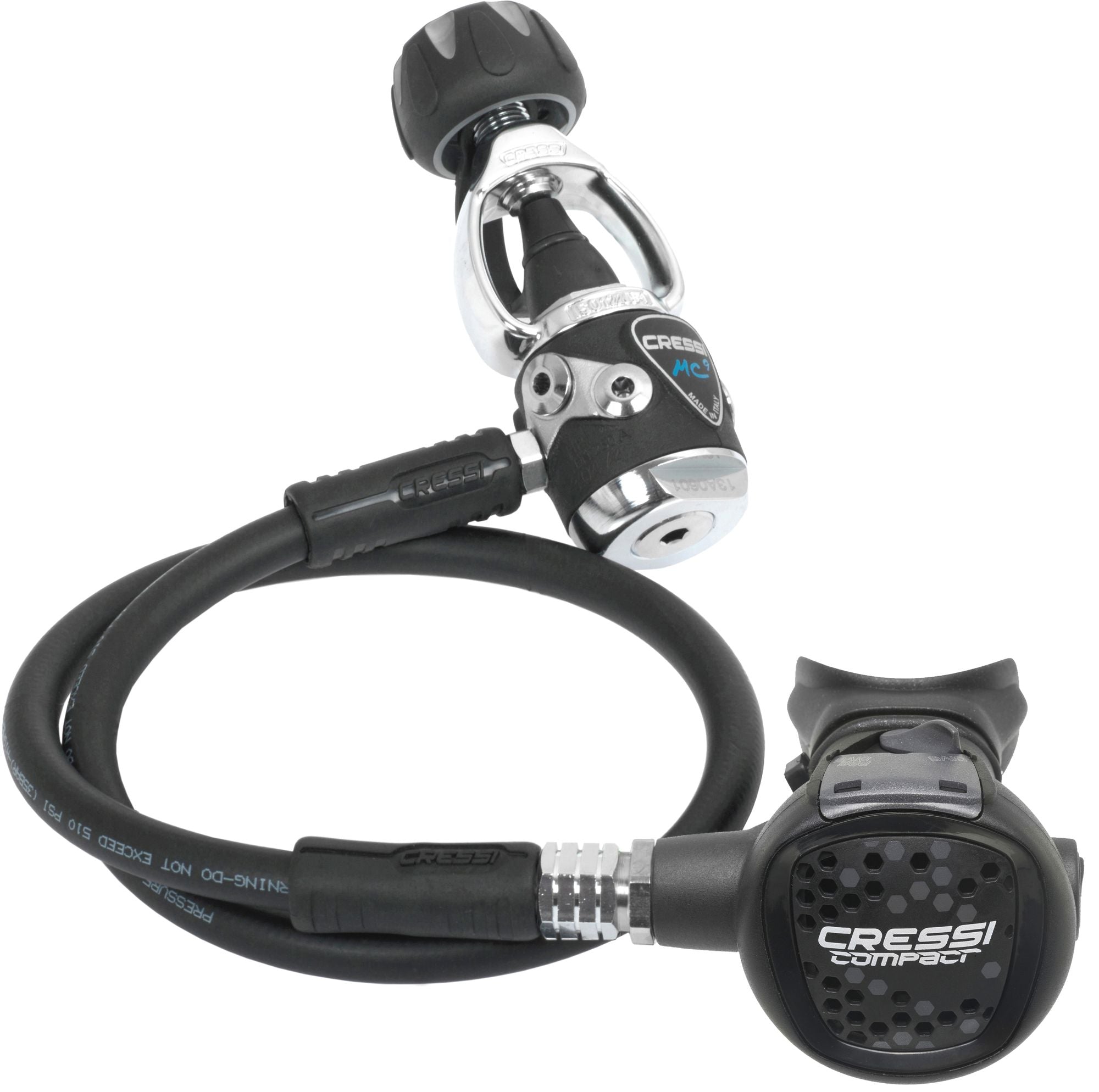

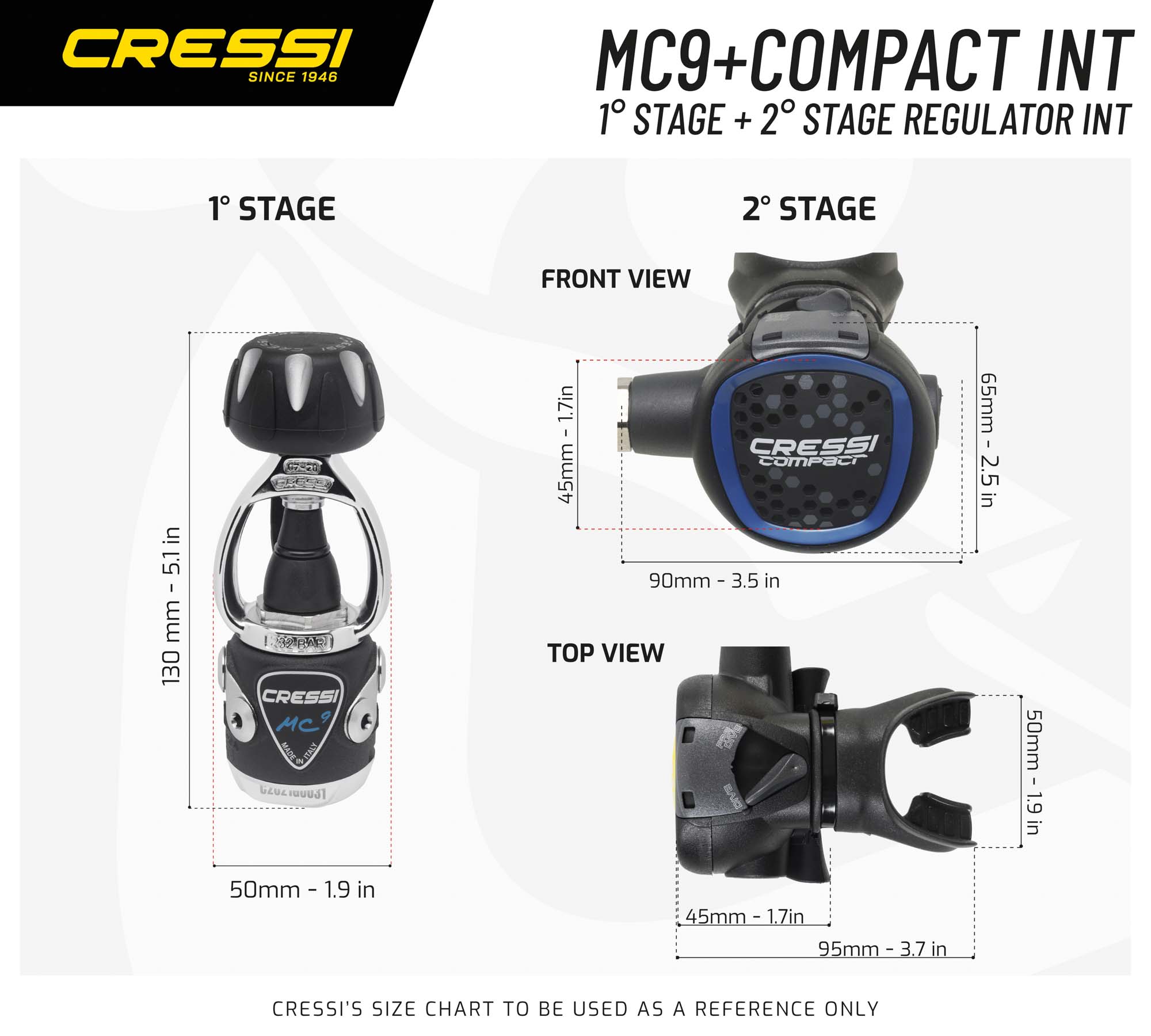

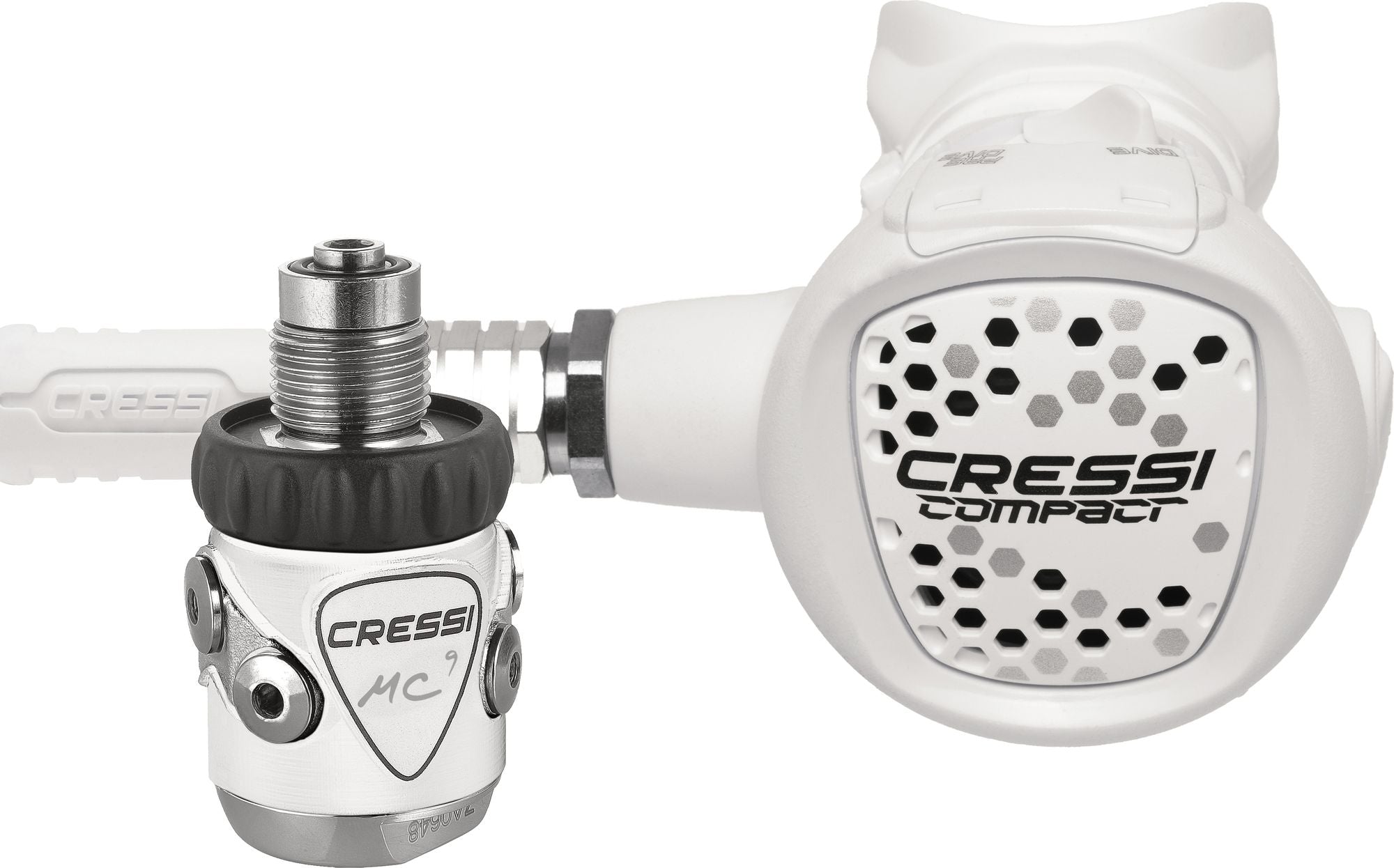

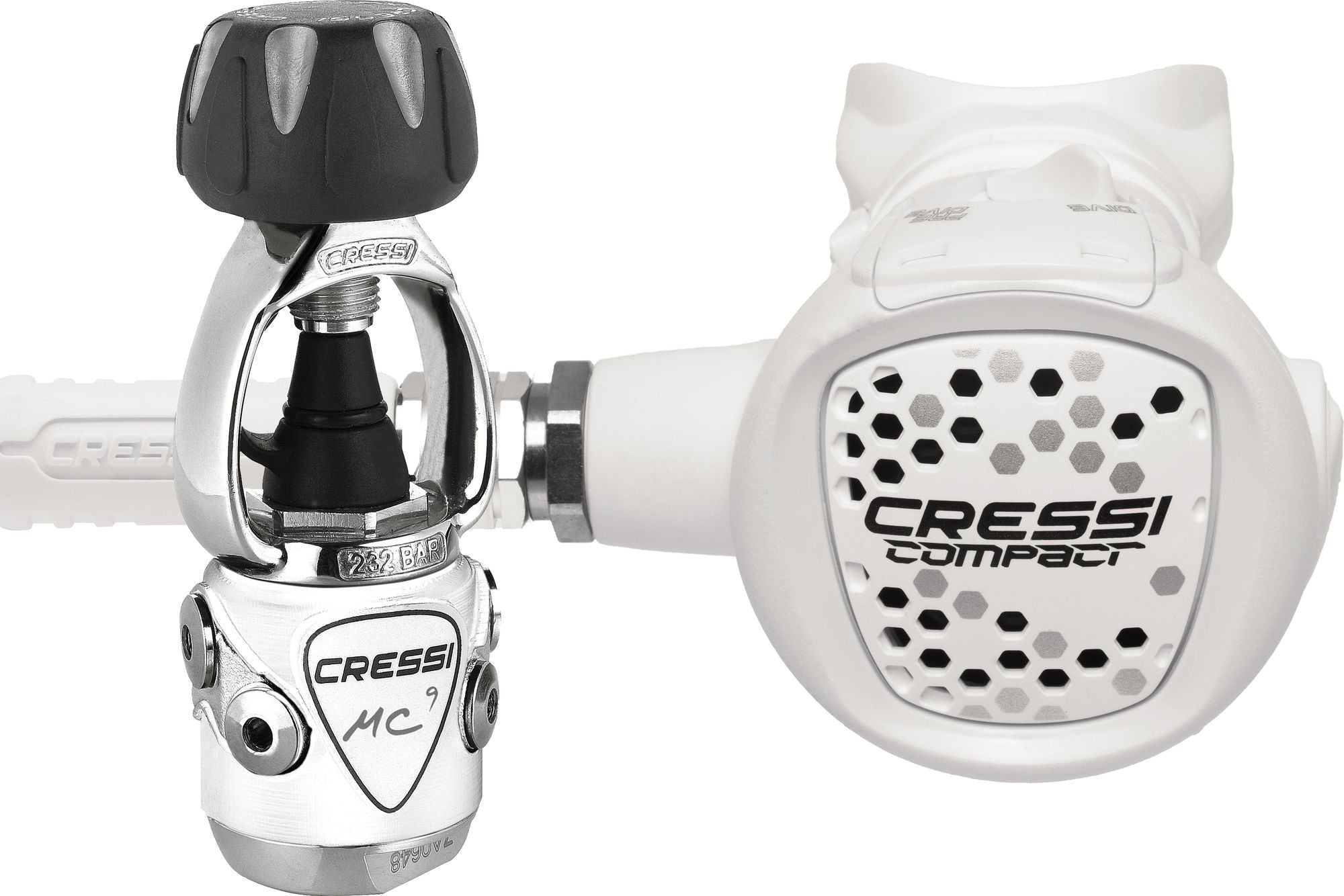

Mc9 + Compact Regulator

Certification EN 250/2014 A over 10° C

Technical features 1st stage:
• Balanced diaphragm (seal chamber for mc9sc)
• 2 outlets hp 7/16 unf
• 4 outlets mp 3/8 unf
• Service pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) yoke version
• Calibration pressure: 10 bar
• Brass body electroless nickel plated
• High capacity conical fi lter electroless nickel plated
• Aisi 316 removable nozzle
• Hyper-balancing
• Anti-pressure drop pneumatic spring
• Setting spring: stainless steel with micropeening treatment
• Replaceable cylinder with anti-friction and anti-corrosion properties
• Elastomer protector
• Flow rate: 4500 l/min
• Yoke version weight: 590 gr
• Din version weight: 450 gr

Technical features 2nd stage:
• Downstream system
• Adjustable venturi effect
• Patented antifriction lever
• Big purge button
• Anti-scratch surface
• Bayonet-type cap holder with security lock
• Removable exhaust tee without tools
• Weight without hose: 135 gr

Combination performance:
• Average cracking effort 6 mbar
• Average breathing effort 1 j/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 A>10° c
