TECHNICAL FEATURES 1ST STAGE
• New piston 1st stage with INT or DIN 300bar connection.
• 4 L.P. ports, 1 HP port for optimal hose orientation.
• Direct external IP calibration system for precise pressure adjustment.
• IP calibration value: 9.5-10bar for consistent performance.
• New optimized 1st stage design for maximum flow.
• Conical filter for improved filtration in both versions.
• Single maintenance kit for both INT and DIN versions.
• Increased water passage slots for better pressure balance.
• Enlarged tool housing holes for easier servicing.
• CE EN250 certification pending for warm water use.
• Glossy finish with “Gun Metal” DIN wheel.
• Interchangeable parts with AC25 and AC2 models.
• Weight, INT version: 670g
• Weight, DIN version: 495g

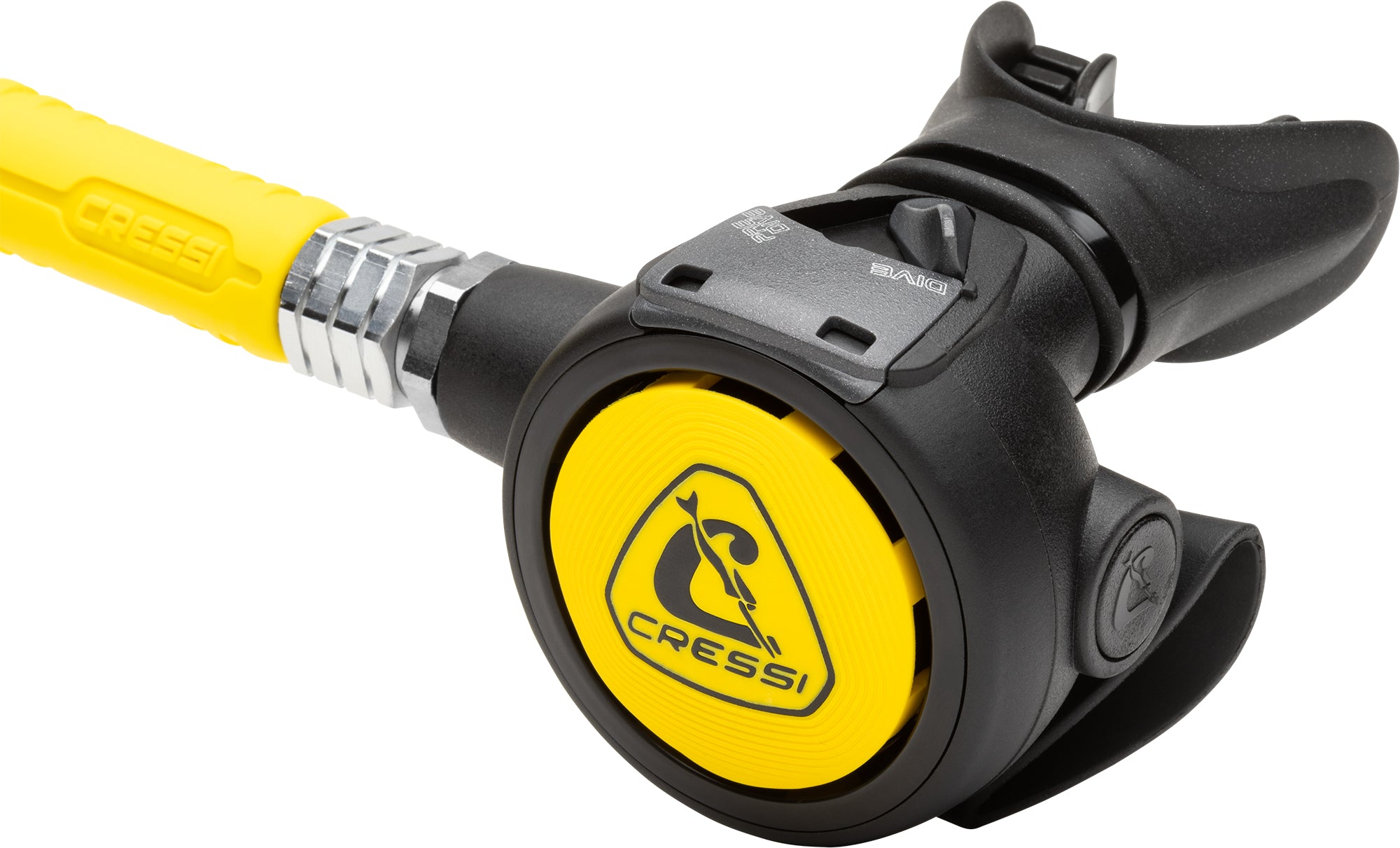

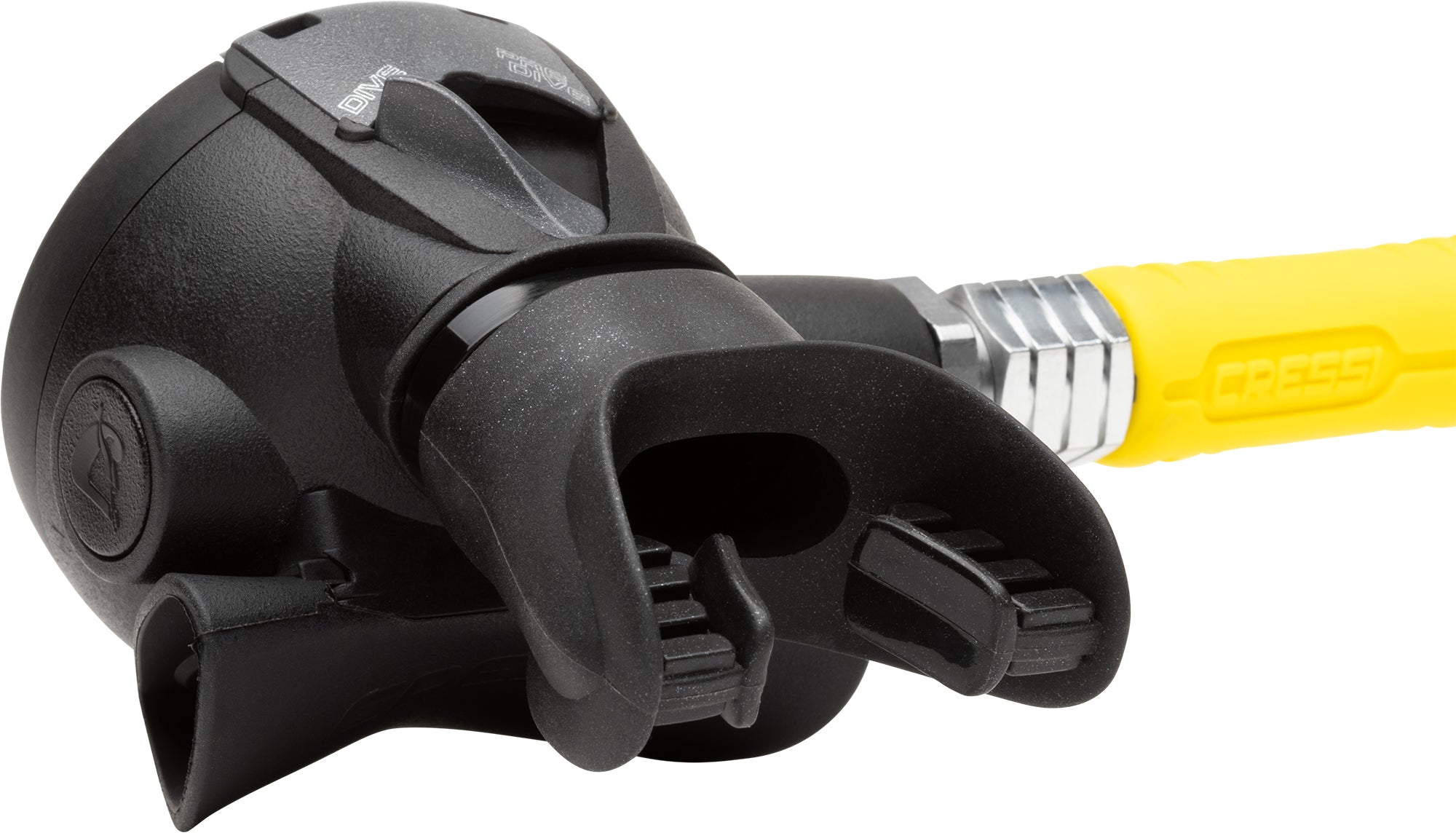

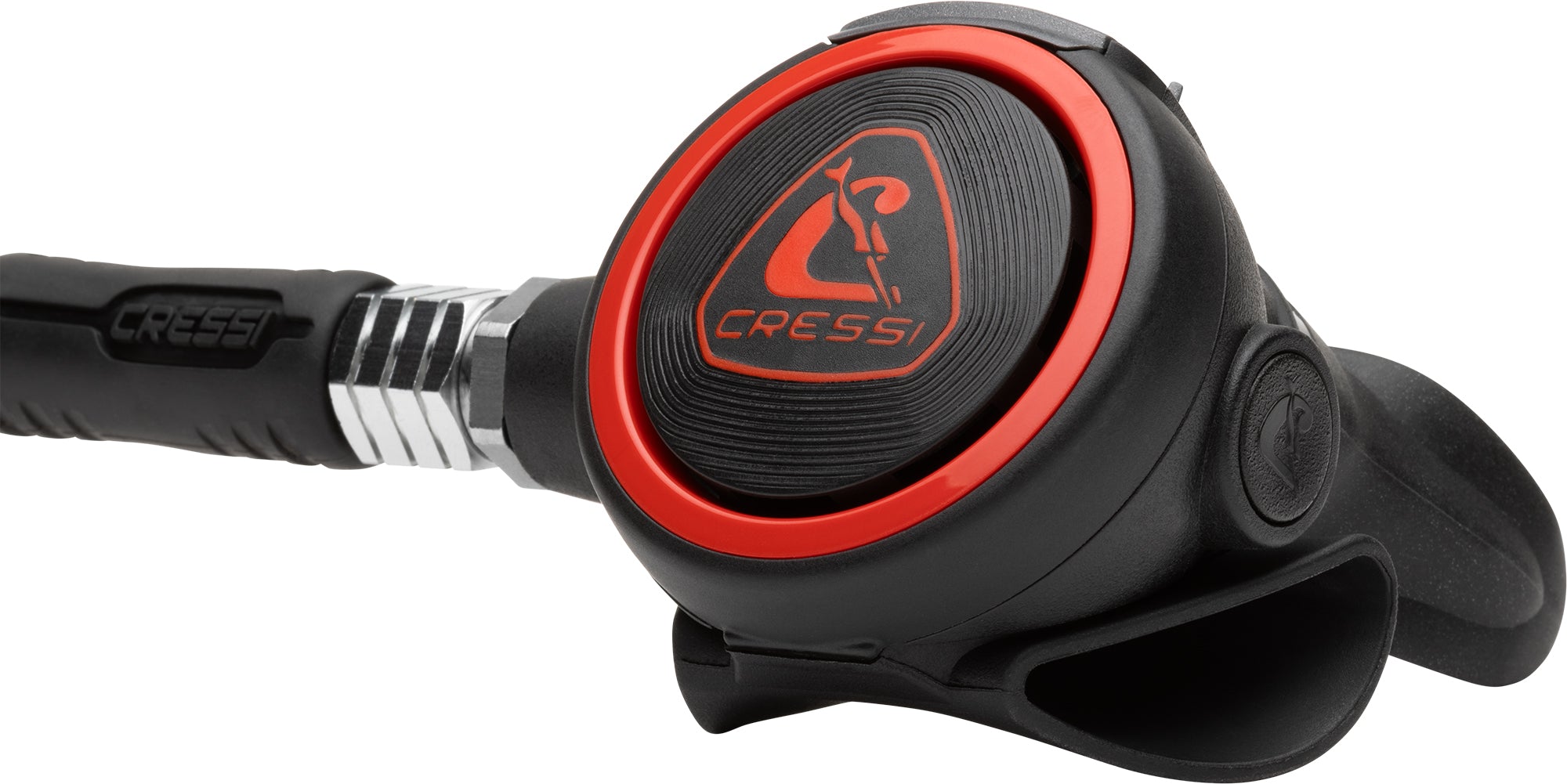

TECHNICAL FEATURES 2ND STAGE
• Downstream system
• Adjustable Venturi effect
• Patented antifriction lever
• Dual-injection, enlarged purge button
• Radial pressure transmission openings
• Anti-scratch surface
• Bayonet-type cap holder with security lock
• Removable exhaust tee without tools
• Weight without hose: 149 g
