Technical Features

• Technical features 1st stage
• Unbalanced piston
• 1 outlets hp 7/16 unf
• 4 outlets mp 3/8 unf
• Service pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) yoke version
• Calibration pressure: 9,5-10 bar
• Brass body electroless nickel plated
• High capacity conical filter electroless nickel plated
• Aisi 316 long lasting piston
• Easy external direct ip adjustment system
• Stainless steel spring
• Flow rate: 2100 l/min
• Yoke version weight: 635 gr din version weight: 495 gr

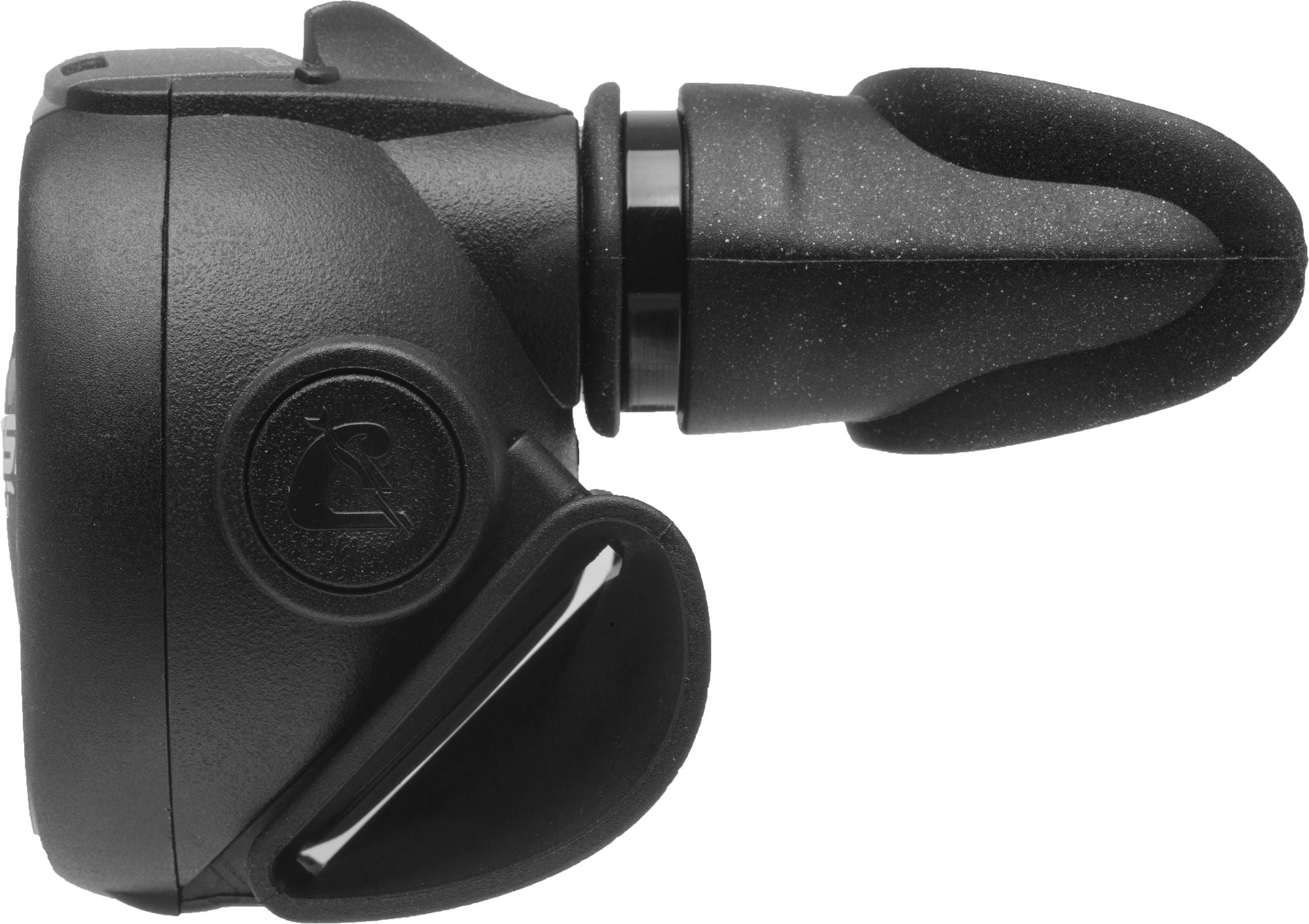

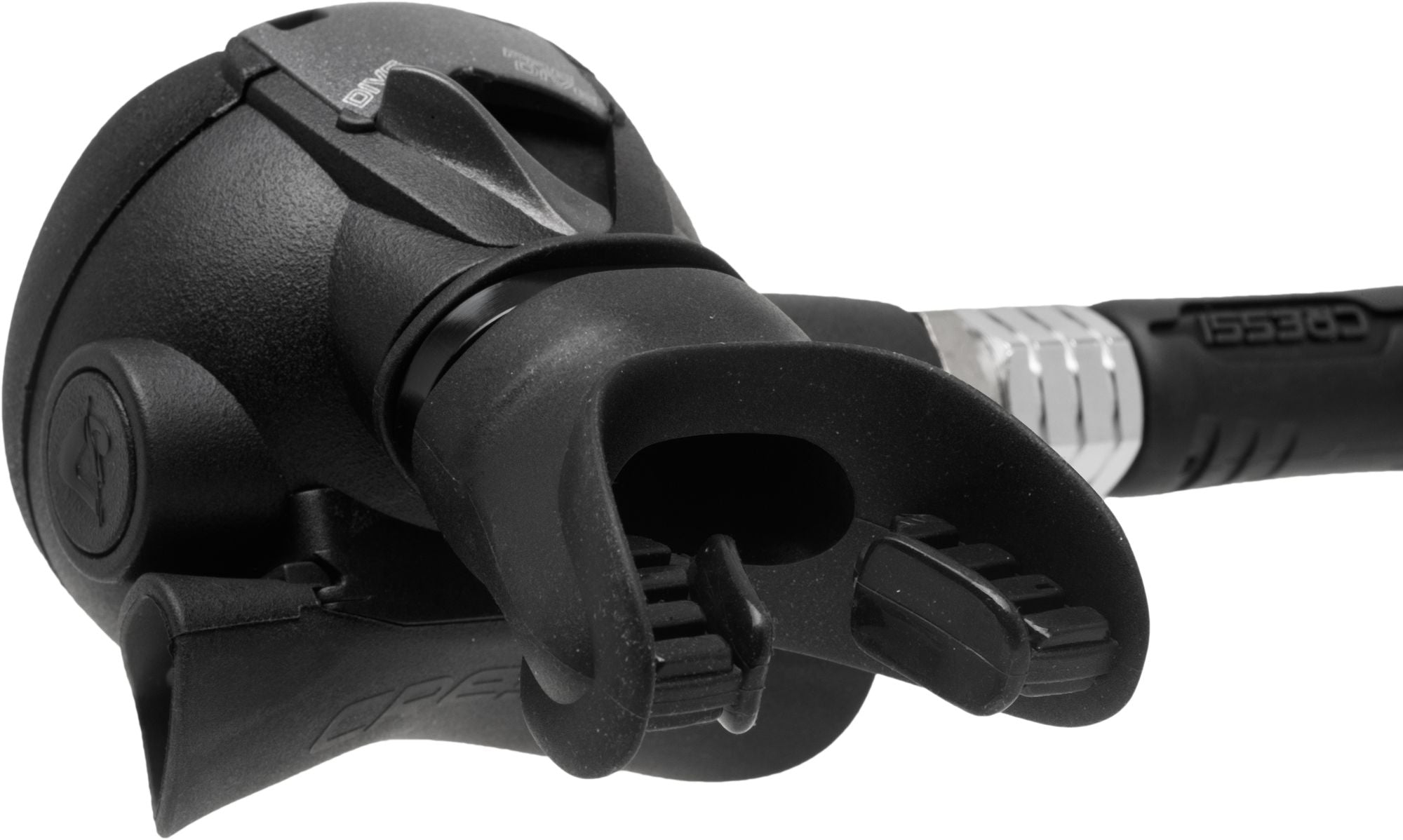

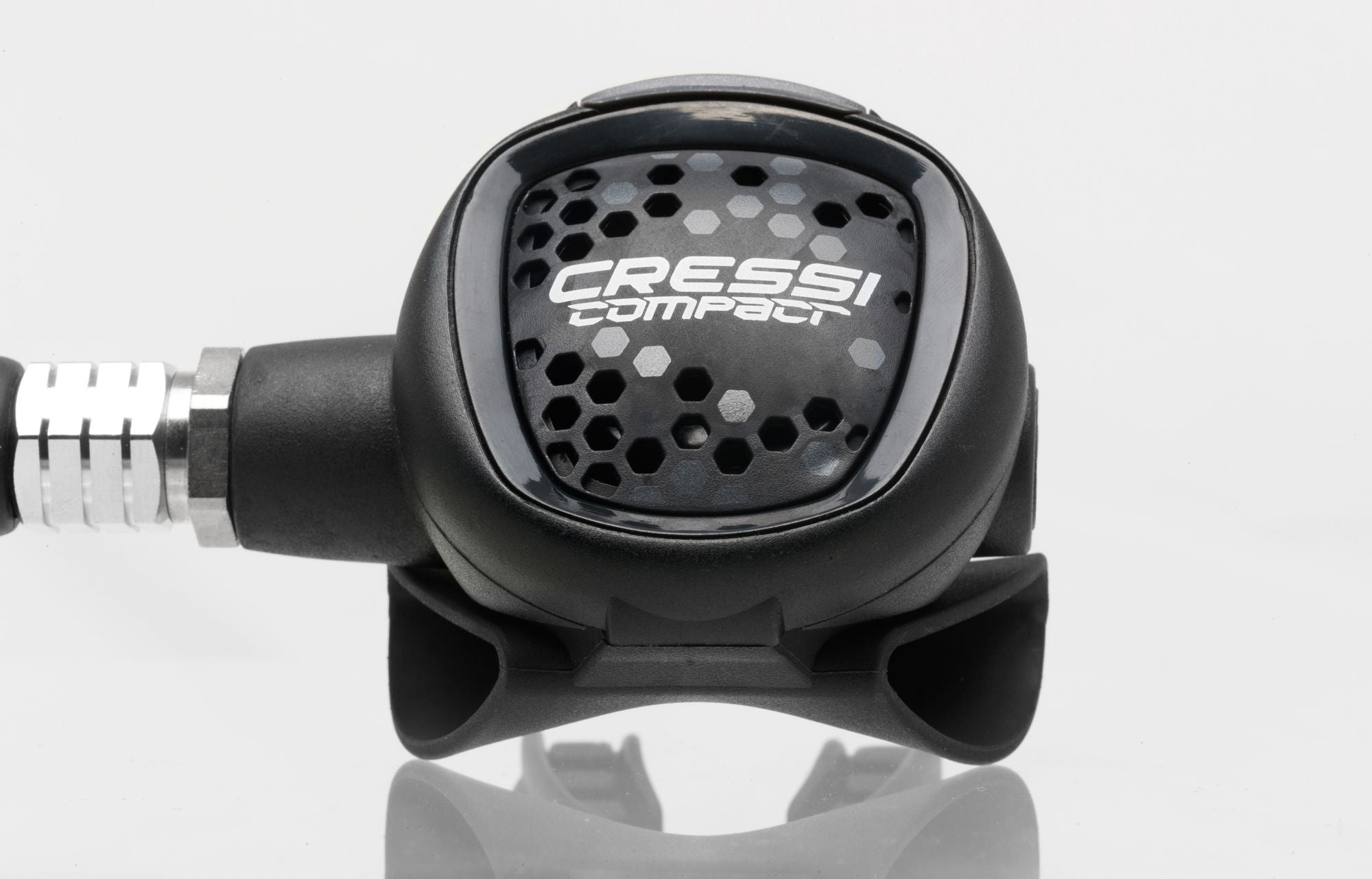

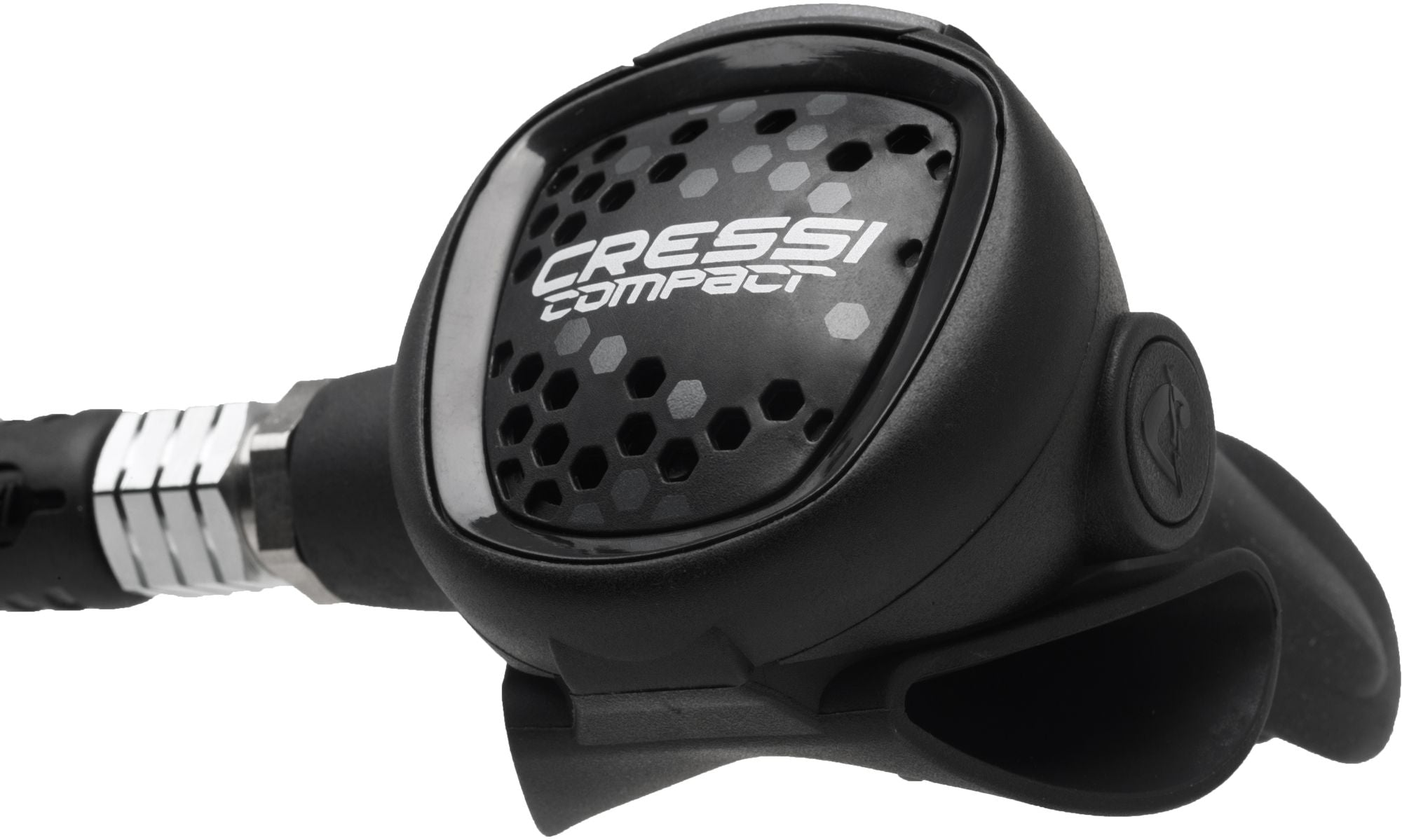

• Technical features 2nd stage
• Downstream system
• Adjustable venturi effect
• Patented antifriction lever
• Big purge button
• Anti-scratch surface
• Bayonet-type cap holder with security lock
• Removable exhaust tee without tools
• Weight without hose: 135 gr
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 a>10° c
• Set (int) + hose tot. weight 923 gr
• Set (din) + hose tot. weight 783 gr
