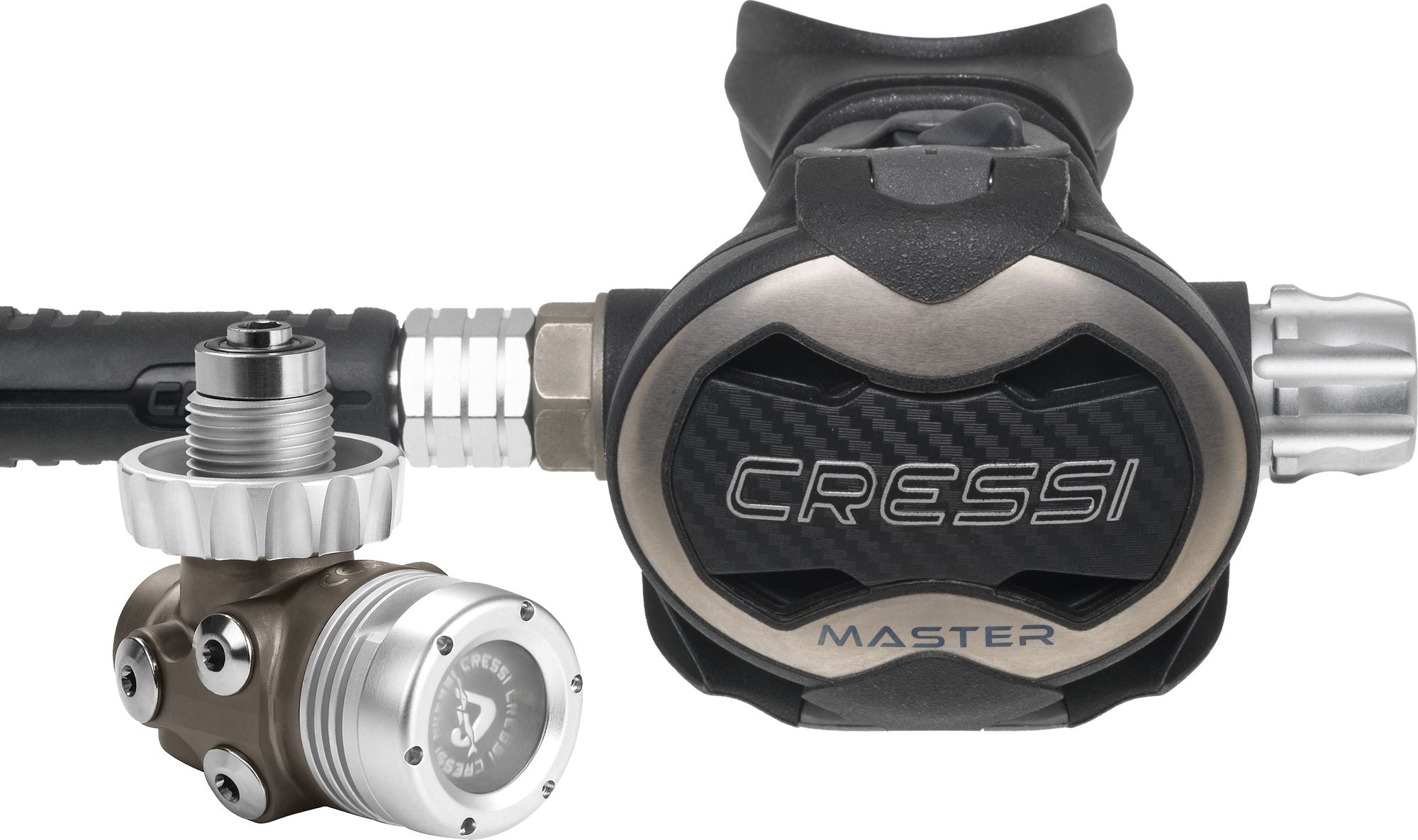

Erogatore T10-Sc Pvd + Master



Erogatore T10-Sc Pvd + Master

SKU:HX830000

Colore: Ottone
Modello: INT
Not Available

CERTIFICATION EN250/2014 FOR COLD WATER.
THE T10-SEAL CHAMBER 1ST STAGE IS ENVIRONMENTALLY SEALED⸴ PROTECTING IT AGAINST ICING IN COLD WATER AND AGAINST CONTAMINATION FROM PARTICULATE MATTER IN SILTY CONDITIONS. WHEN PAIRED WITH THE MASTER SECOND STAGE⸴ WHICH INCLUDES AN INTERNAL HEAT EXCHANGER⸴ THIS REGULATOR IS AN EXCELLENT CHOICE FOR DIVERS EXPLORING THE MOST EXTREME COLD WATER ENVIRONMENTS.


Caratteristiche tecniche

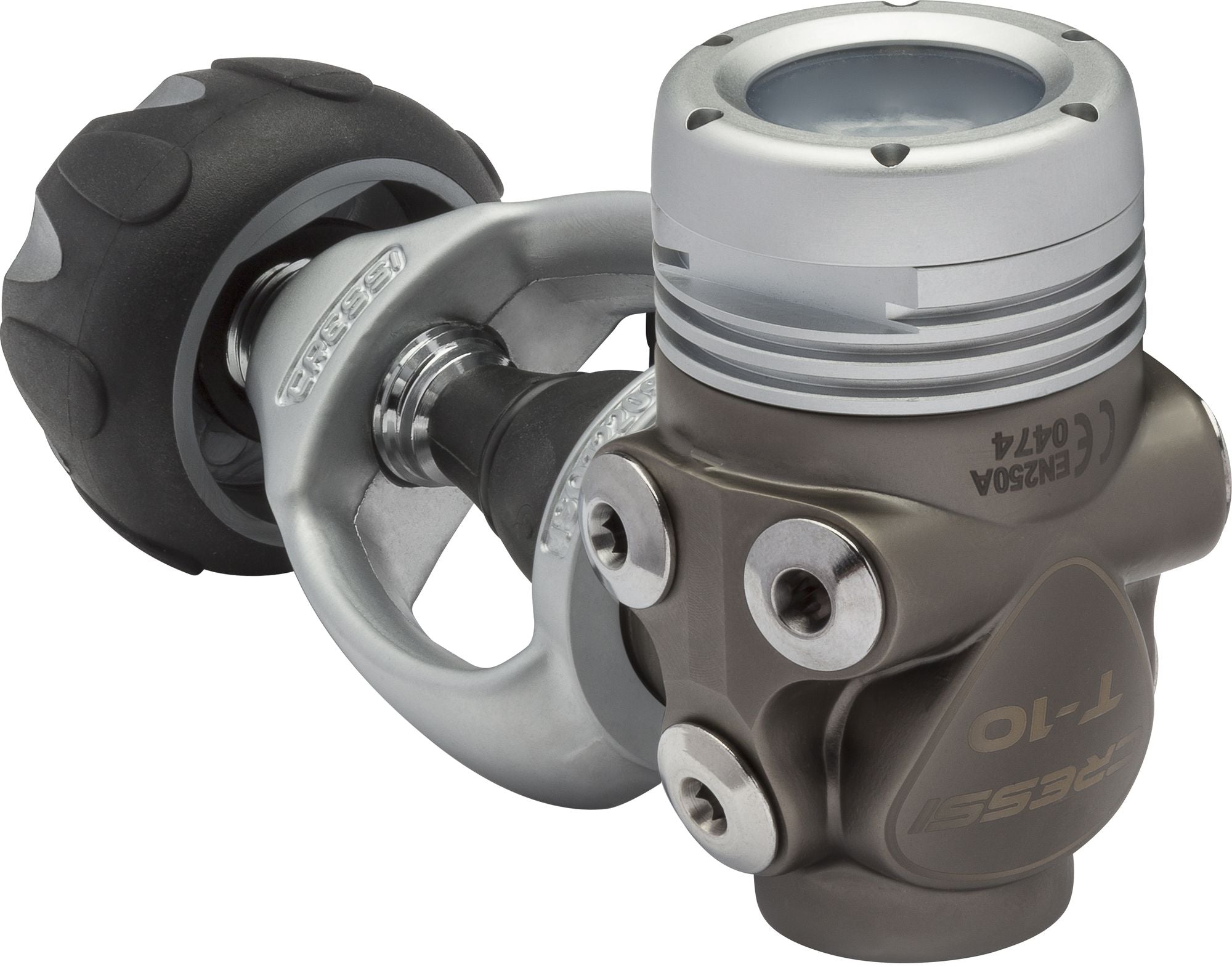

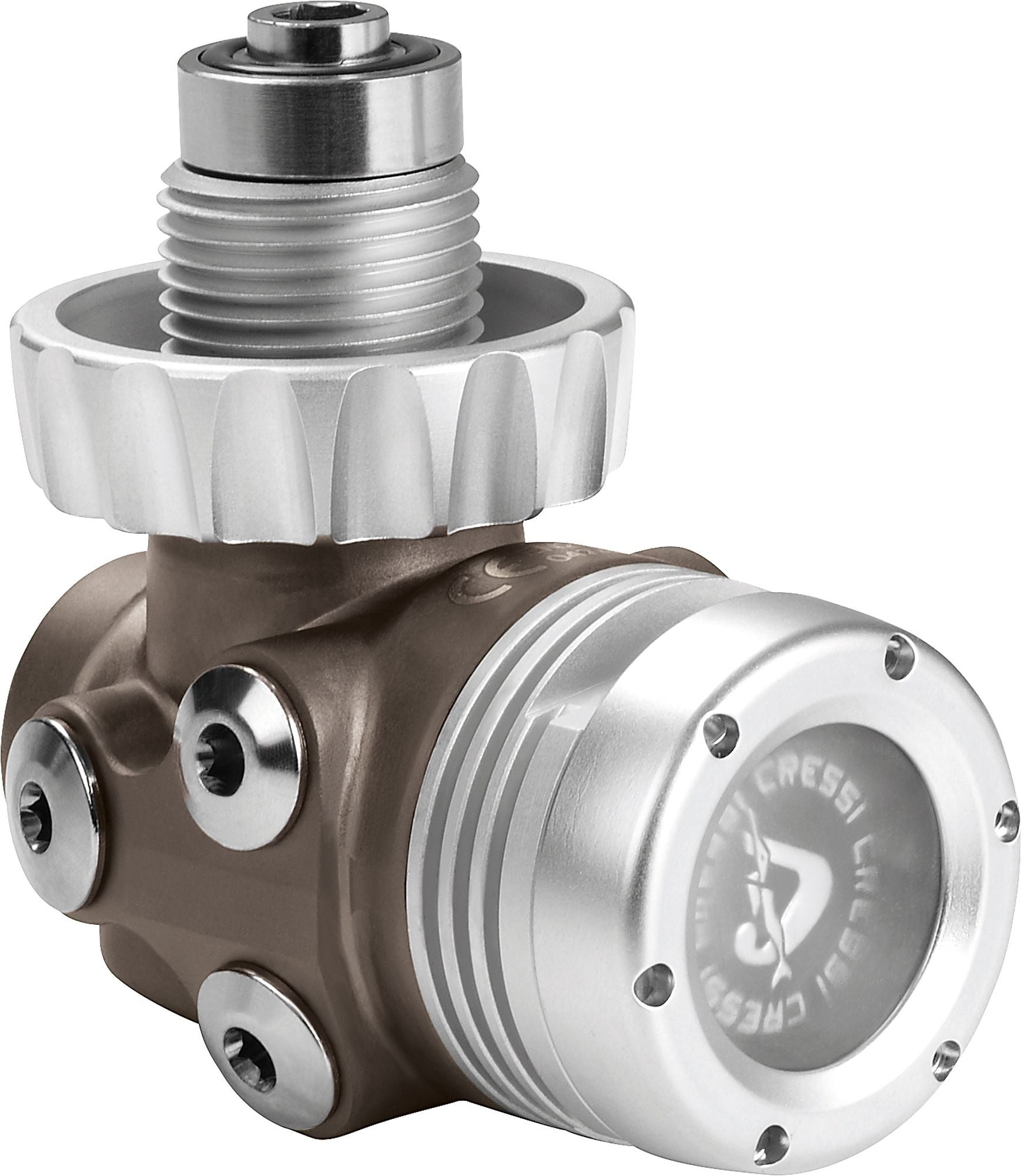

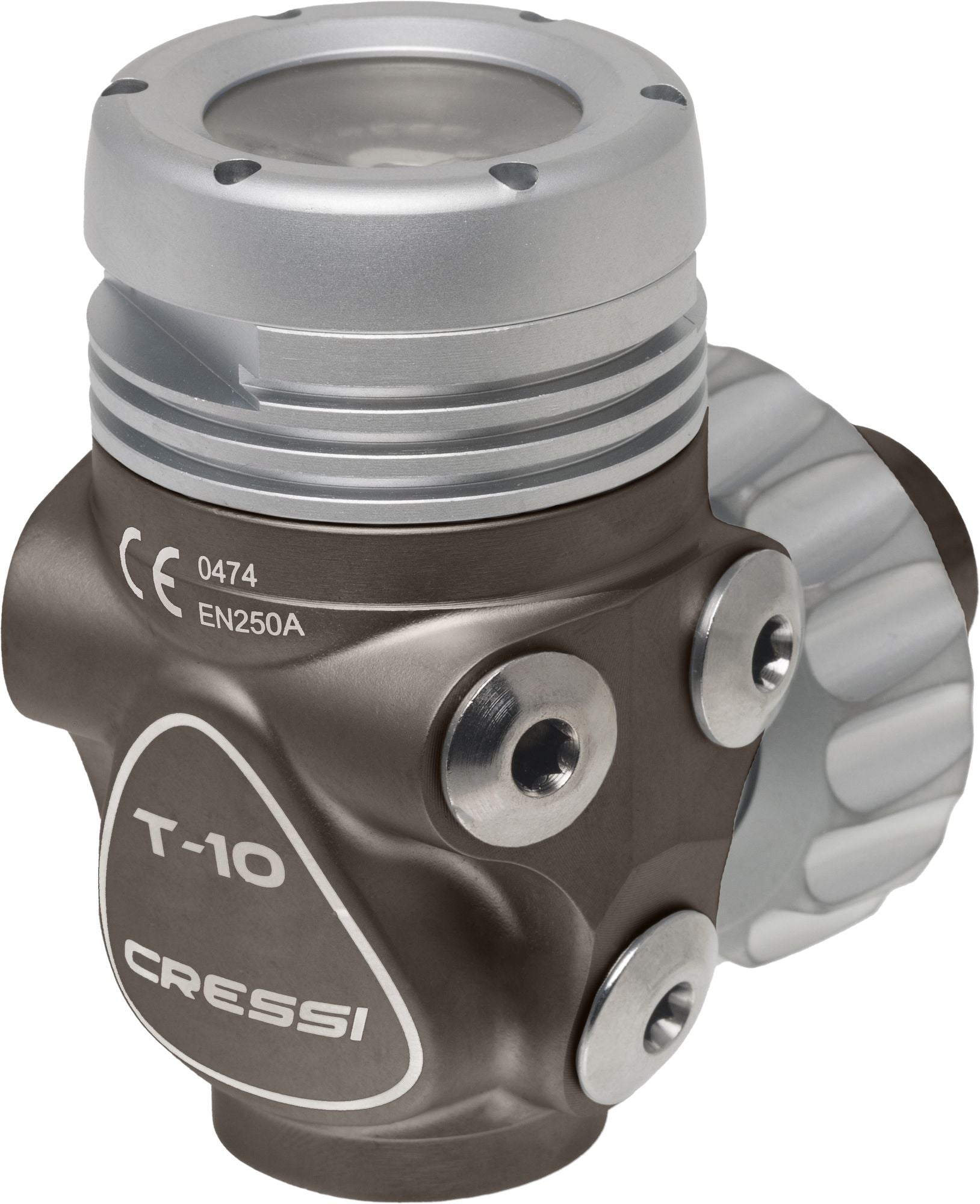

• Technical features 1st stage
• Hyperbalanced diaphragm (watertight chamber on t10-sc)
• 2 hp 7/16 unf ports
• 4 mp 3/8 unf ports
• Operating pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) international version
• Calibration pressure: 10 bar
• Body coated with pvd process
• High-capacity conical fi lter in chemically nickel-plated spherical bronze
• Removable nozzle in aisi 316 steel
• Hyperbalancing system
• Anti-pressure drop pneumatic spring
• Stainless steel calibration spring with micropeening treatment
• Low-friction technopolymer slider shaft
• Body protection in polyurethane thermoplastic
• Quantity of air supplied: 4500 l/min
• Weight, int version: 720 gr
• Weight, din version: 602 gr

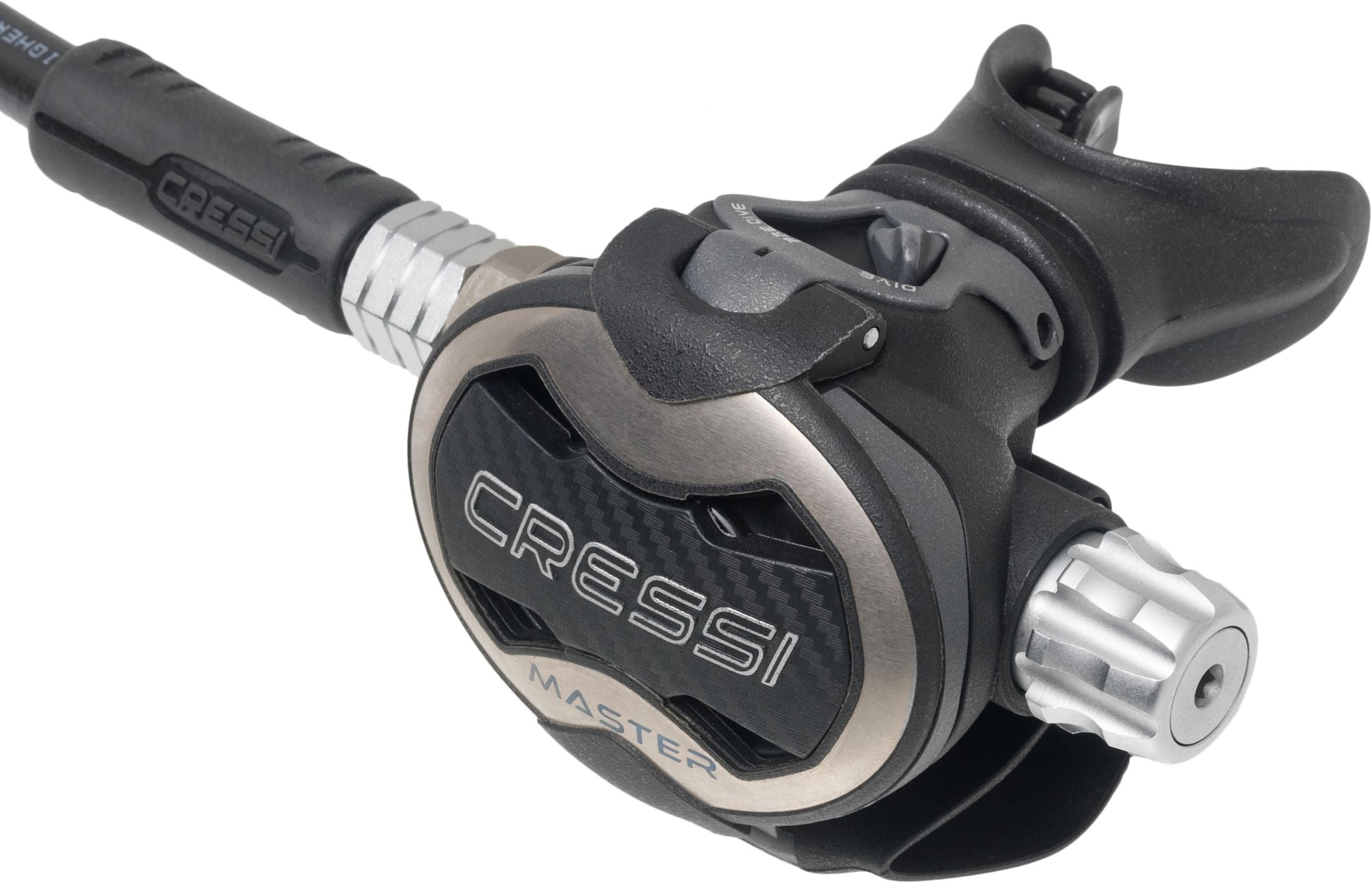

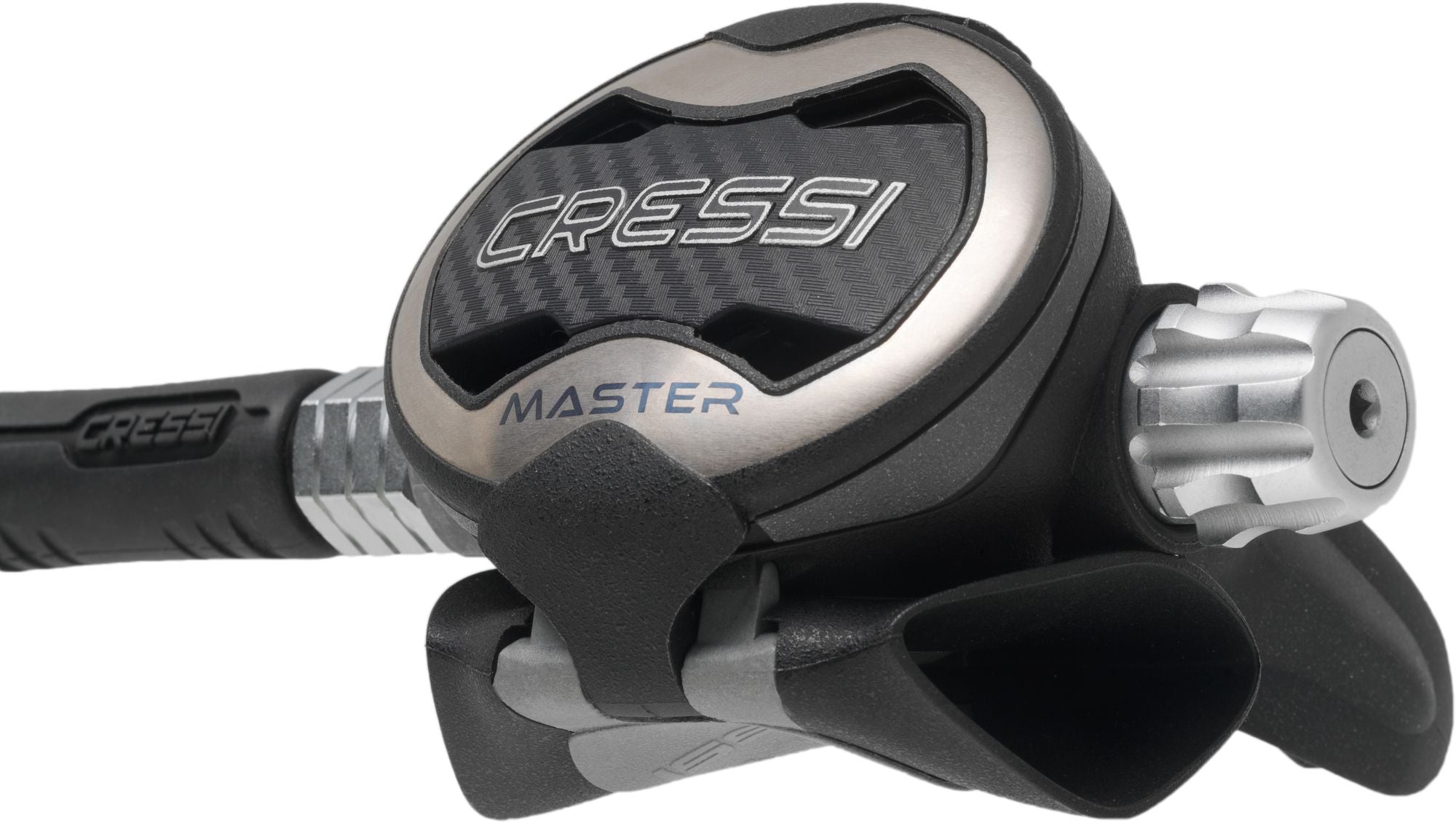

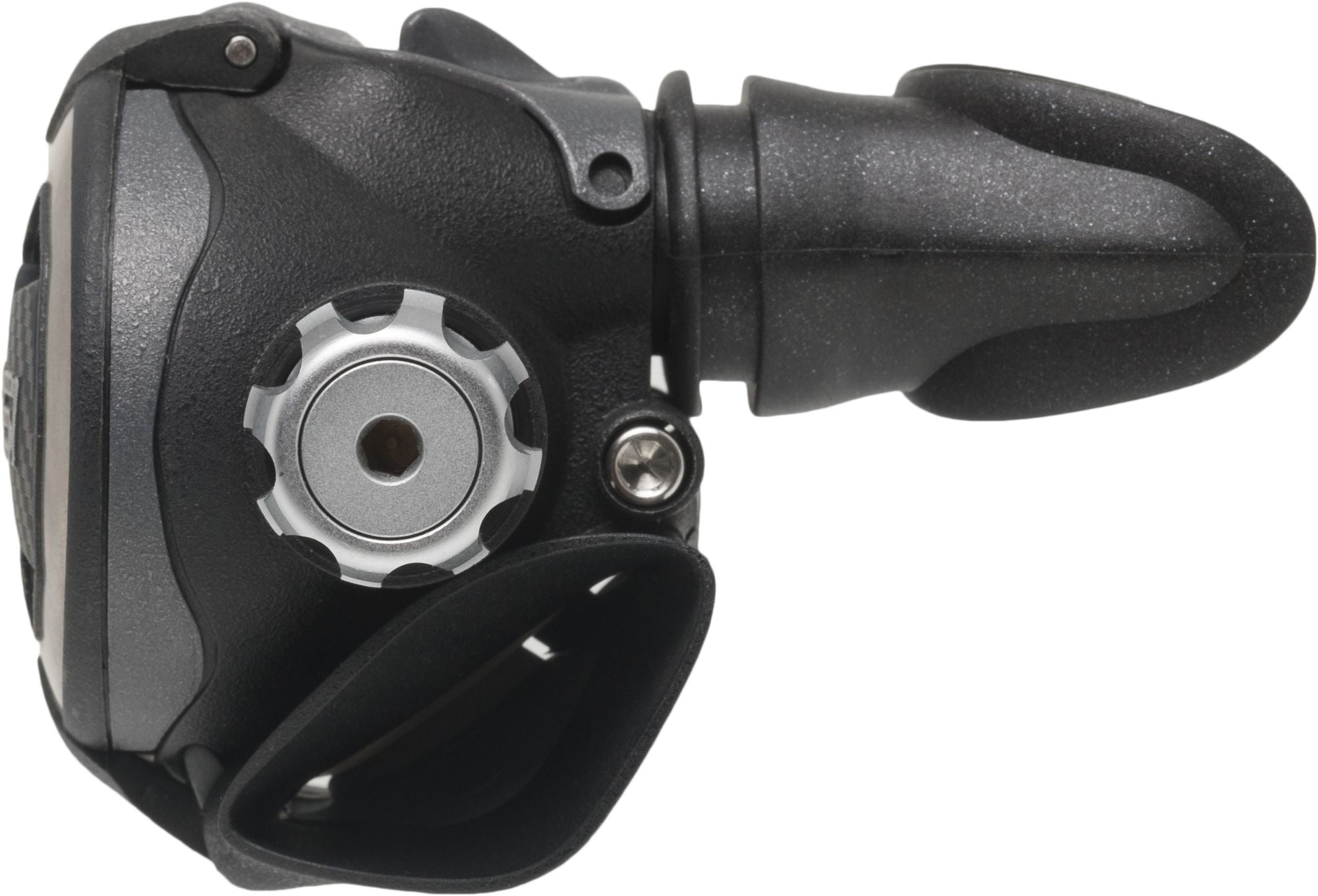

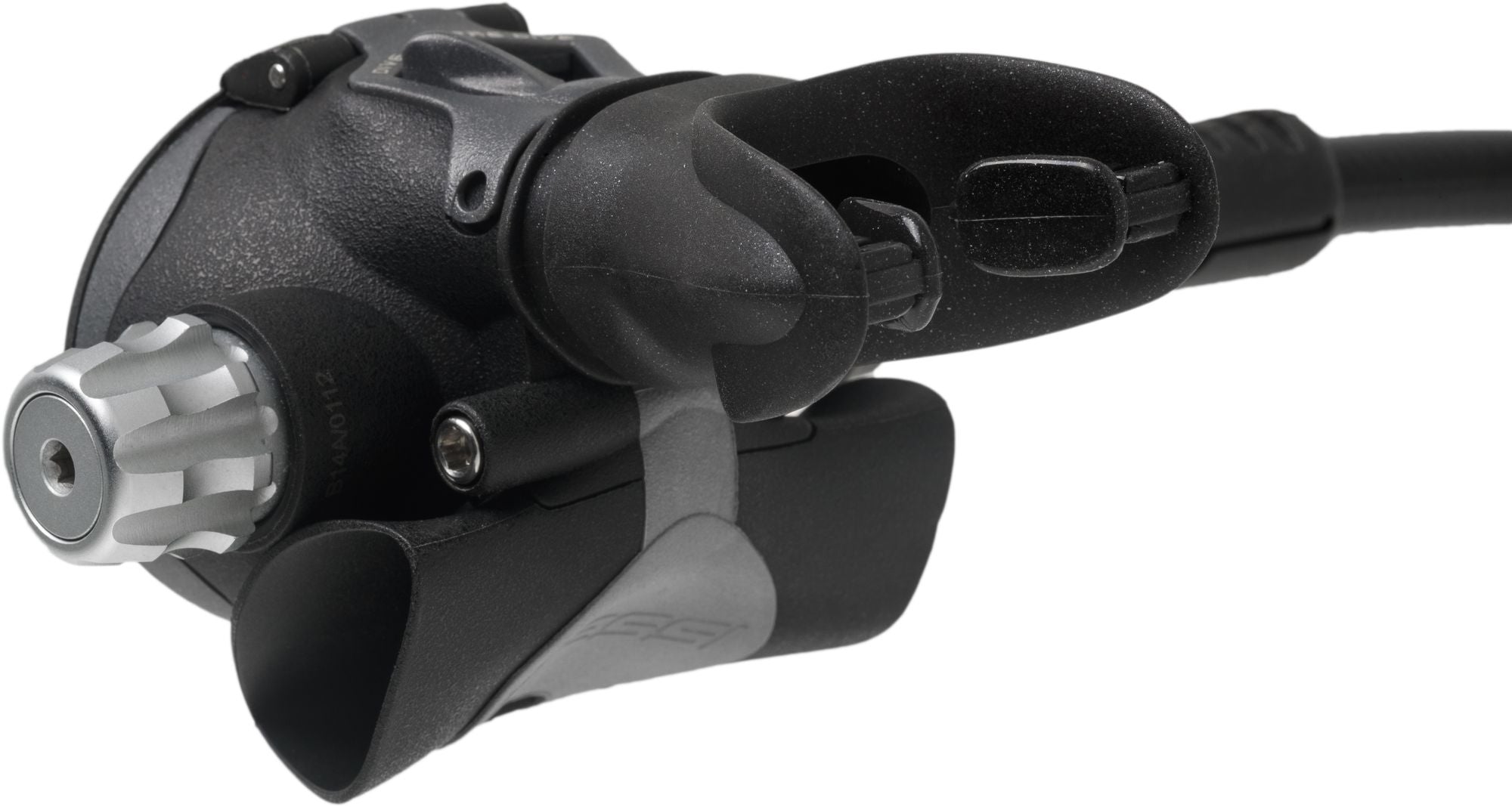

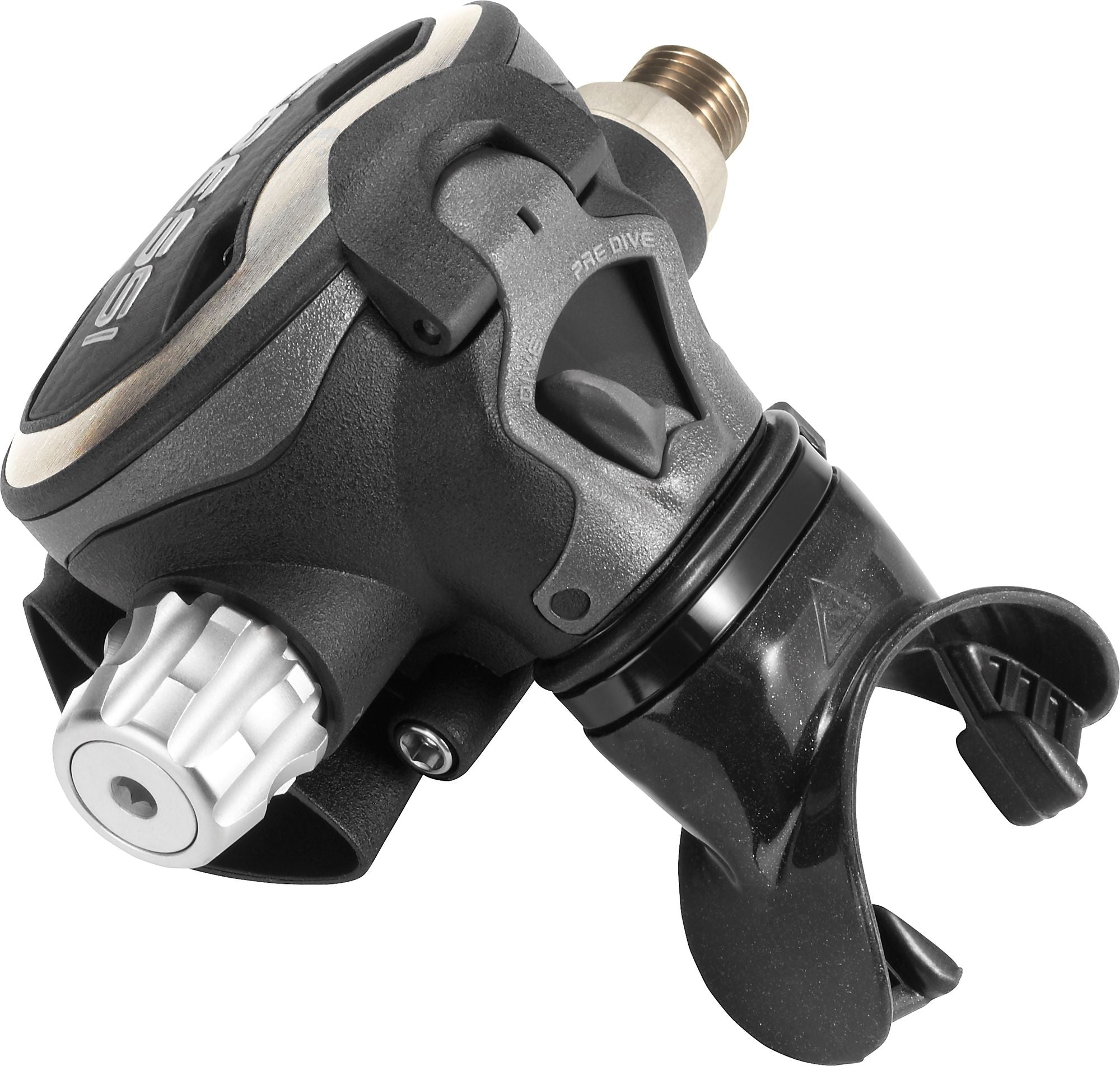

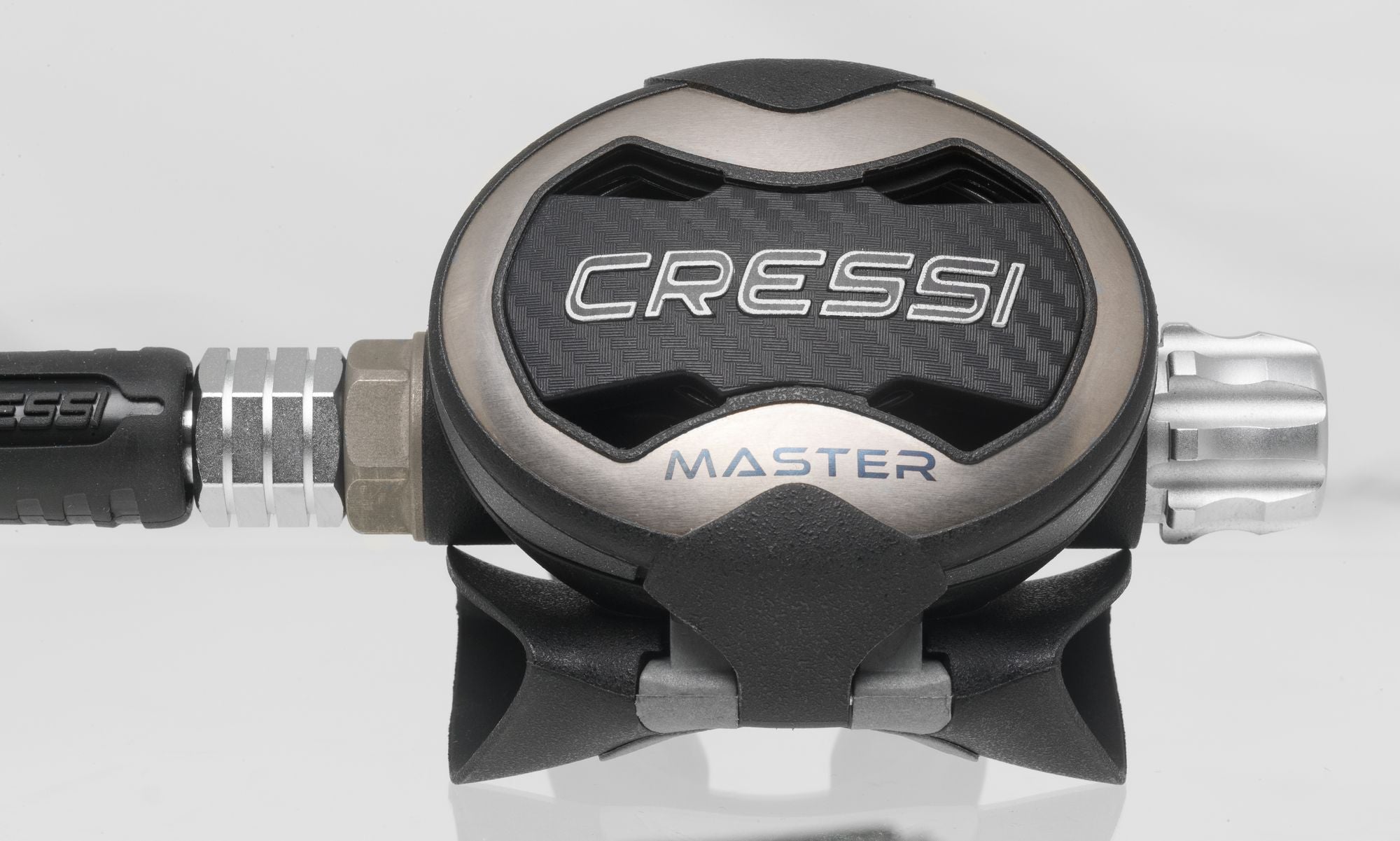

• Technical features 2nd stage
• Pneumatically balanced
• Adjustable venturi
• Adjustable inhalation effort
• Patented elliptical diaphragm
• Patented low-friction lever
• Air delivery system without injector
• Adjuster knob coated with pvd process with dual or
• Laser-etched titanium front piece
• Internal heat exchanger
• Cap opening with cam-lock
• Noise-absorbing technopolymer body
• Removable technopolymer defl ector

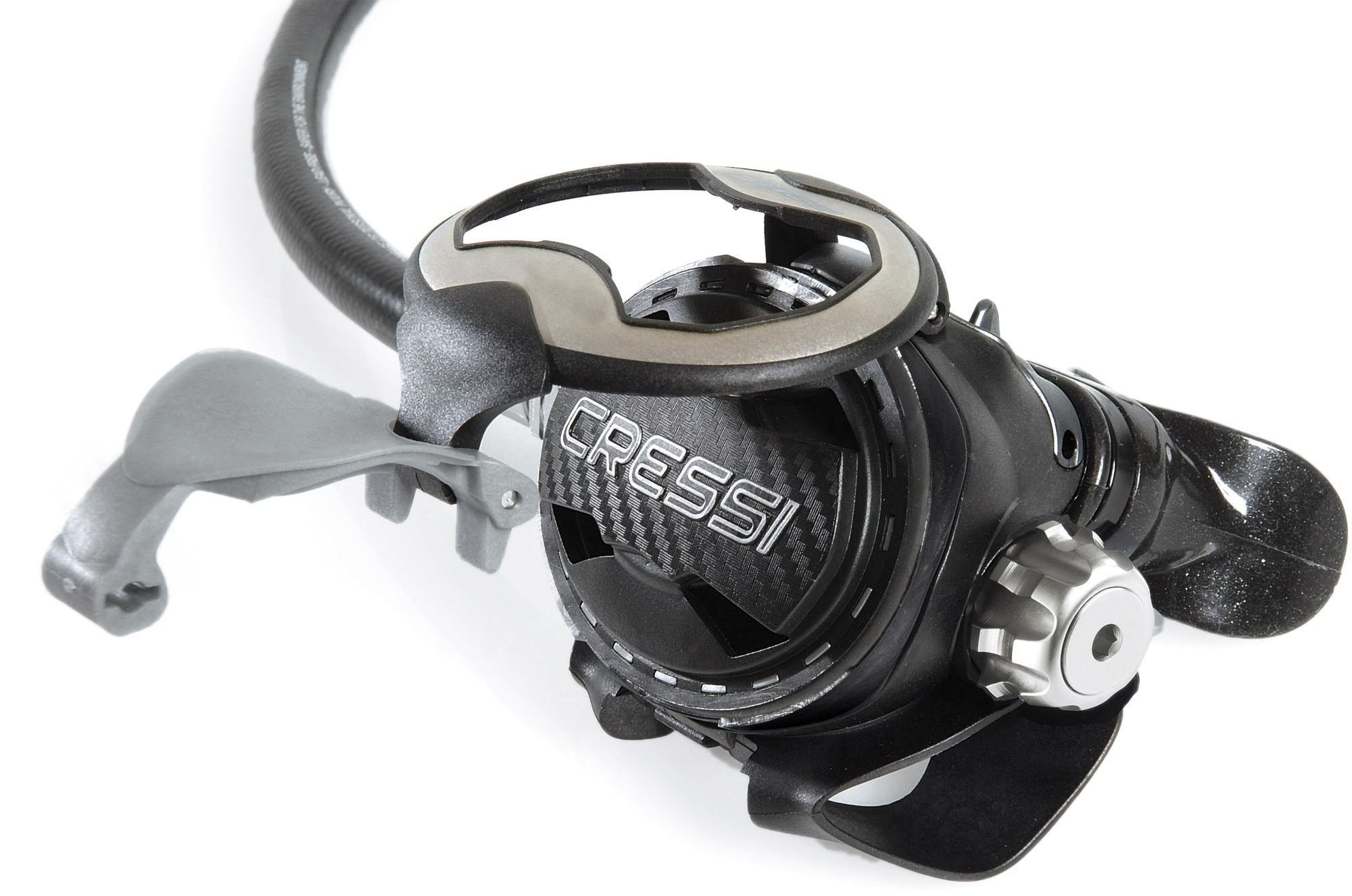

• Removable mechanics
• Weight without hose: 207 gr
• Combination performance
• Average cracking effort 3.5 mbar
• Average breathing effort 0.6 j/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 for cold waters

La camera t10-seal 1ª fase è a tenuta stagna, proteggendola dalla formazione di ghiaccio in acqua fredda e dalla contaminazione da particolato in condizioni di limo. Se abbinato al secondo stadio master, che include uno scambiatore di calore interno, questo regolatore è una scelta eccellente per i subacquei che esplorano gli ambienti più estremi dell’acqua fredda. Erogatore ad alte prestazioni. Ideale per subacquei esperti o professionisti che hanno bisogno di un dispositivo ad alte prestazioni che sia semplice, robusto e senza appendici che potrebbero essere danneggiate.
