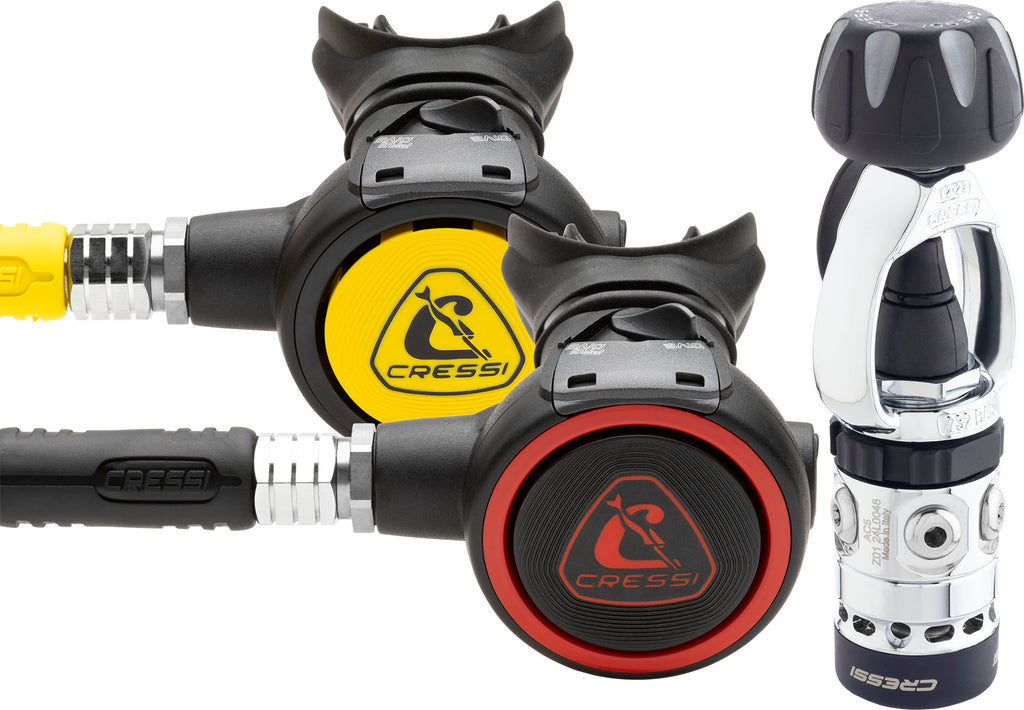

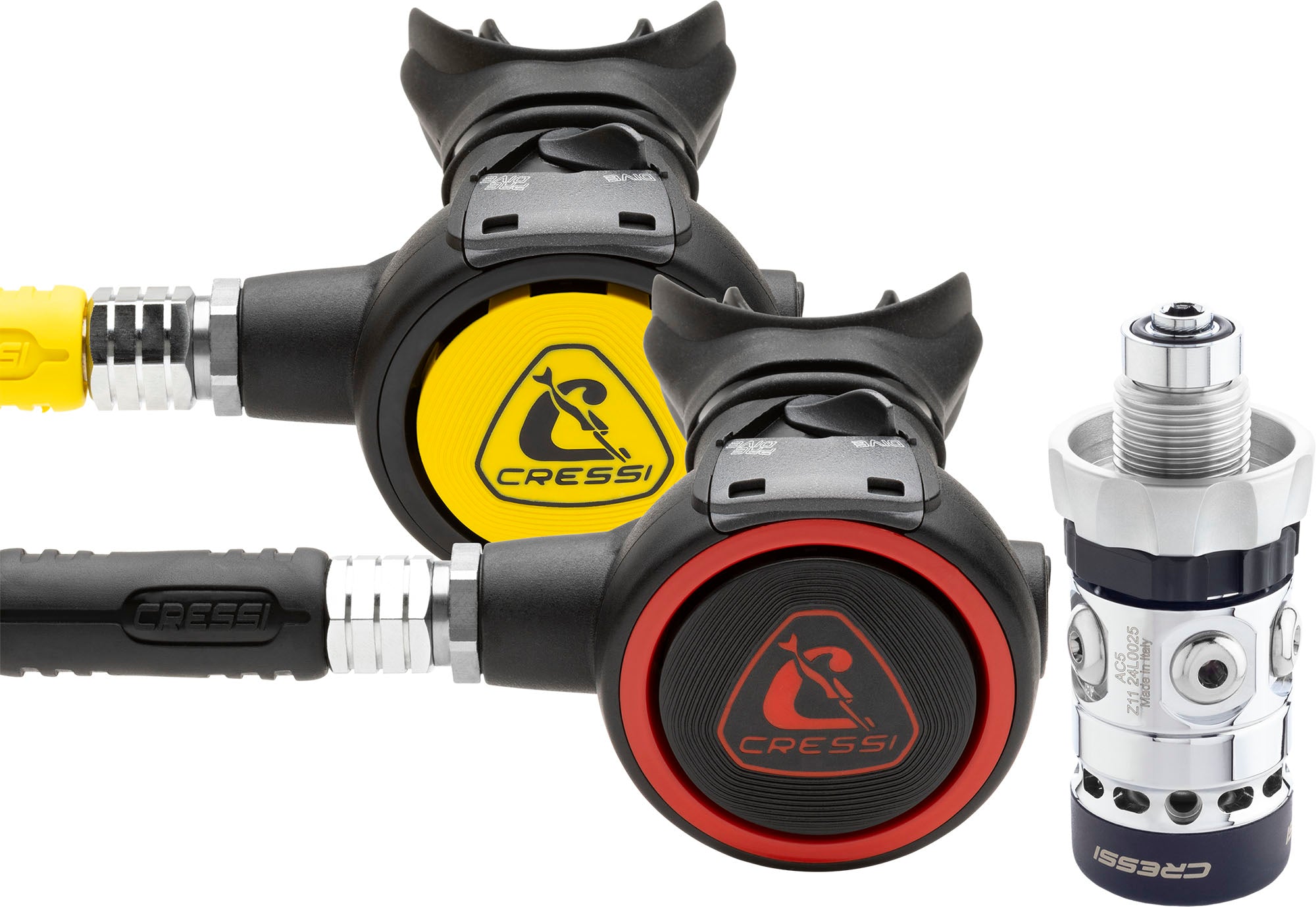

TECHNICAL FEATURES 1ST STAGE
- New piston 1st stage with INT or DIN 300bar connection.
- 4 L.P. ports, 1 HP port for optimal hose orientation.
- Direct external IP calibration system for precise pressure adjustment.
- IP calibration value: 9.5-10bar for consistent performance.
- New optimized 1st stage design for maximum flow.
- Conical filter for improved filtration in both versions.
- Single maintenance kit for both INT and DIN versions.
- Increased water passage slots for better pressure balance.
- Enlarged tool housing holes for easier servicing.
- CE EN250 certification pending for warm water use.
- Glossy finish with “Gun Metal” DIN wheel.
- Interchangeable parts with AC25 and AC2 models.
- Weight, INT version: 670g
- Weight, DIN version: 495g

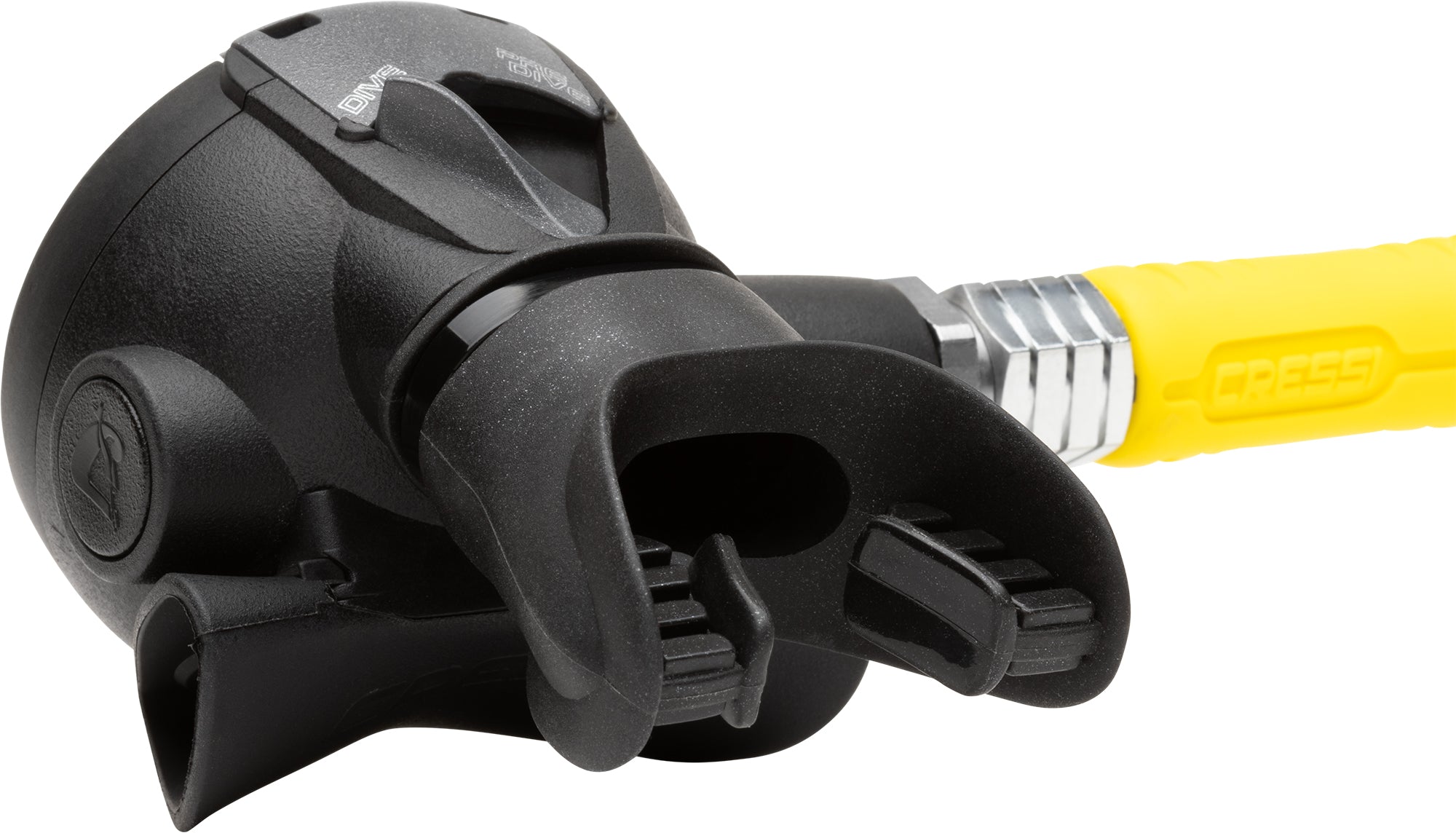

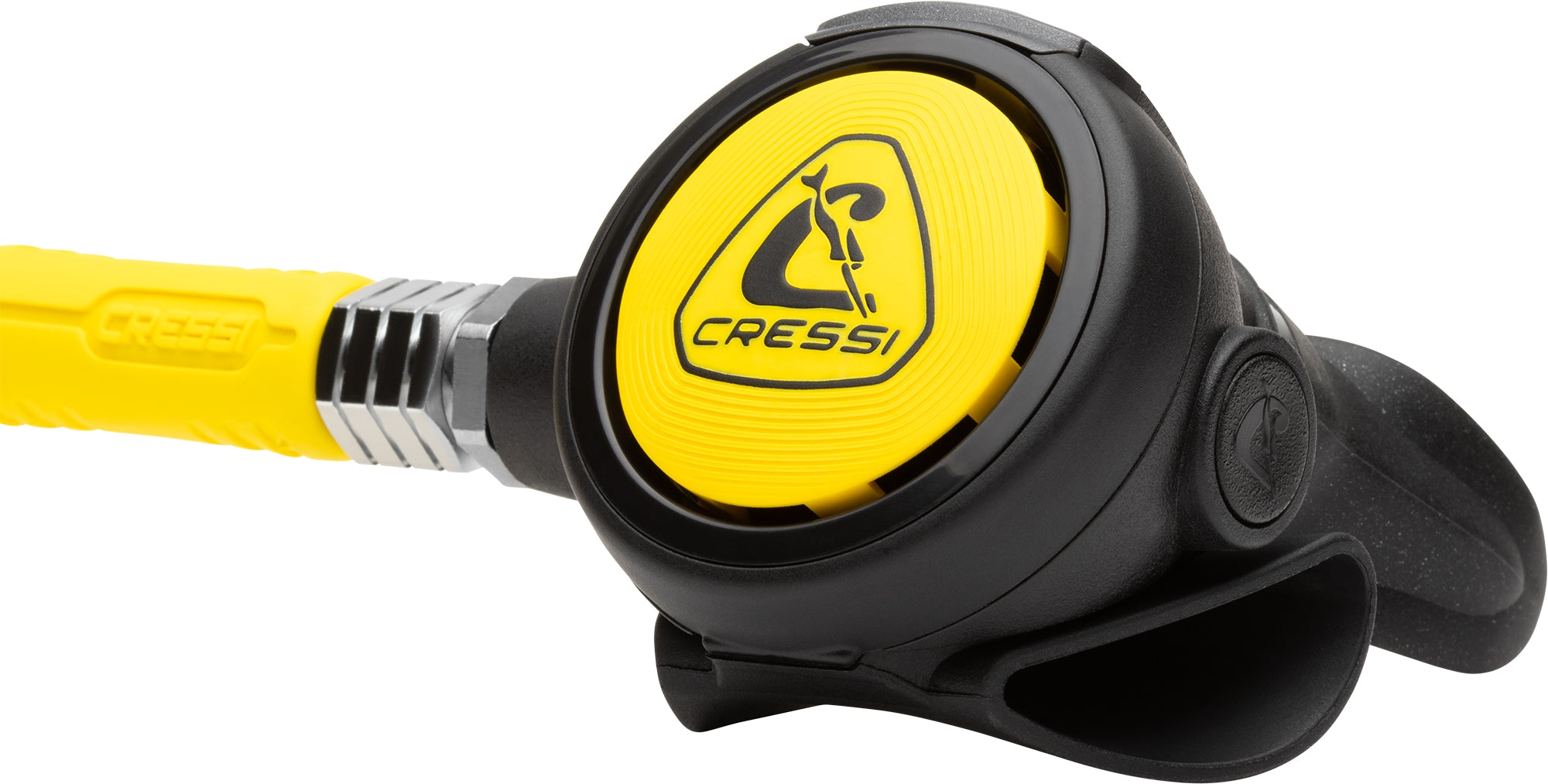

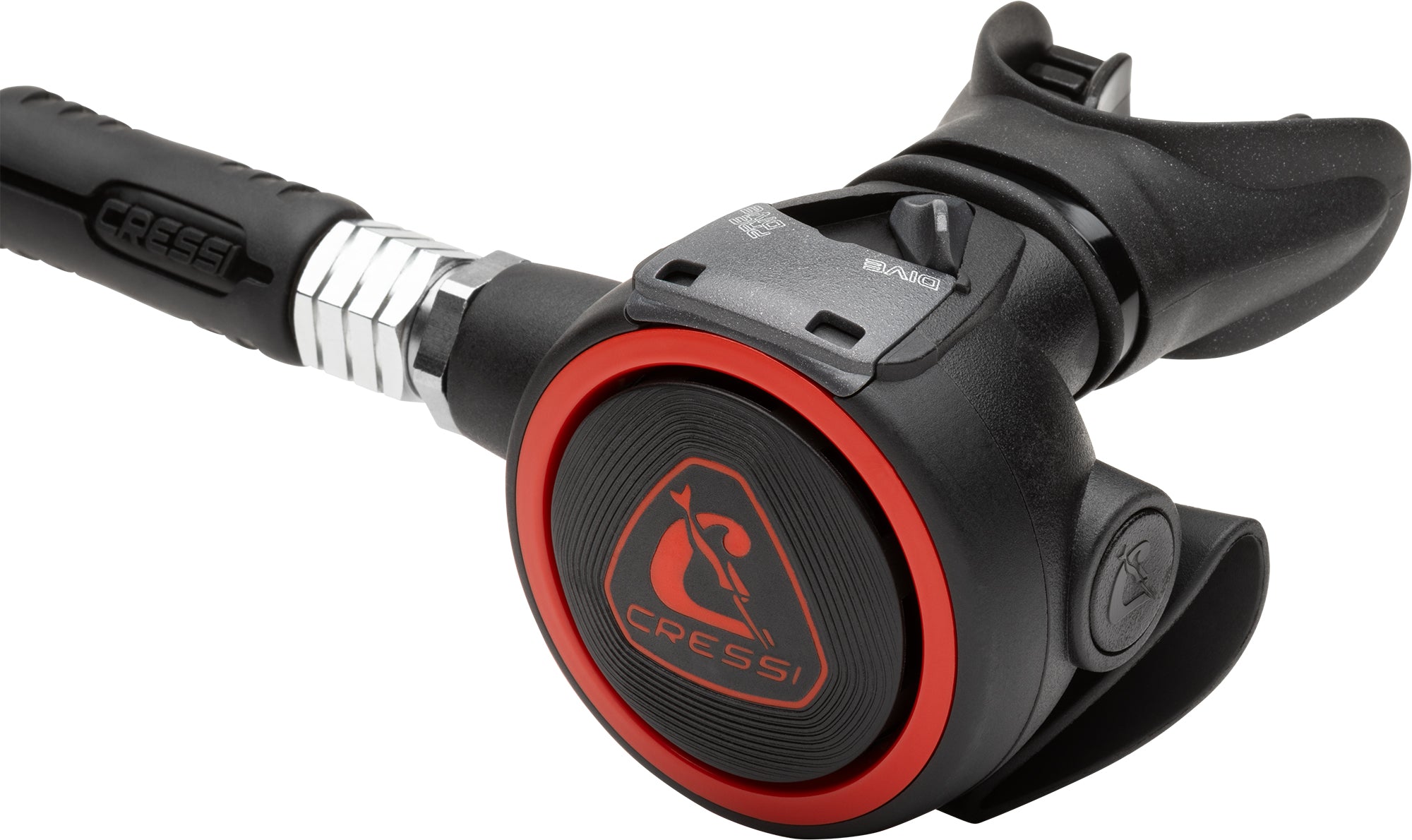

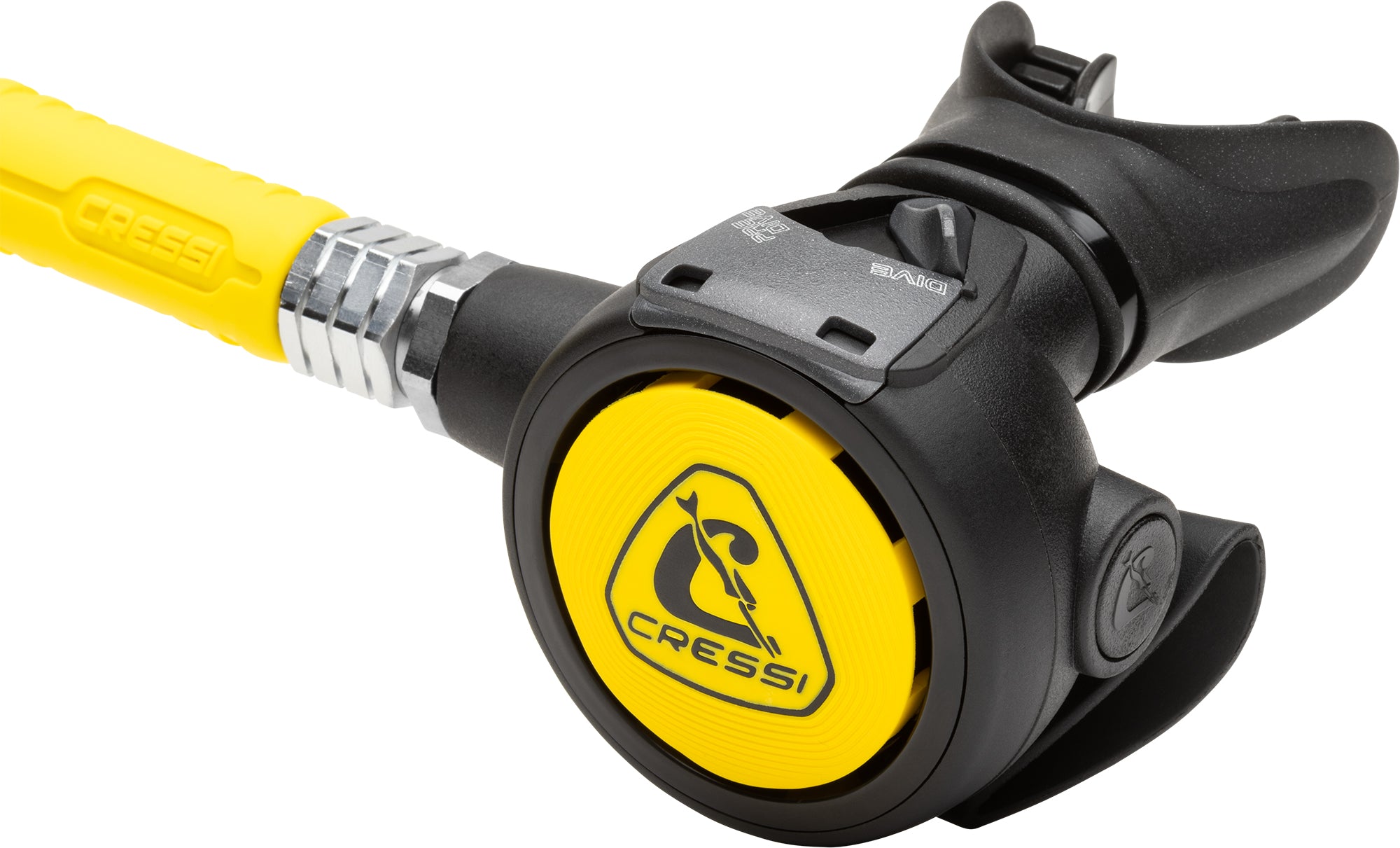

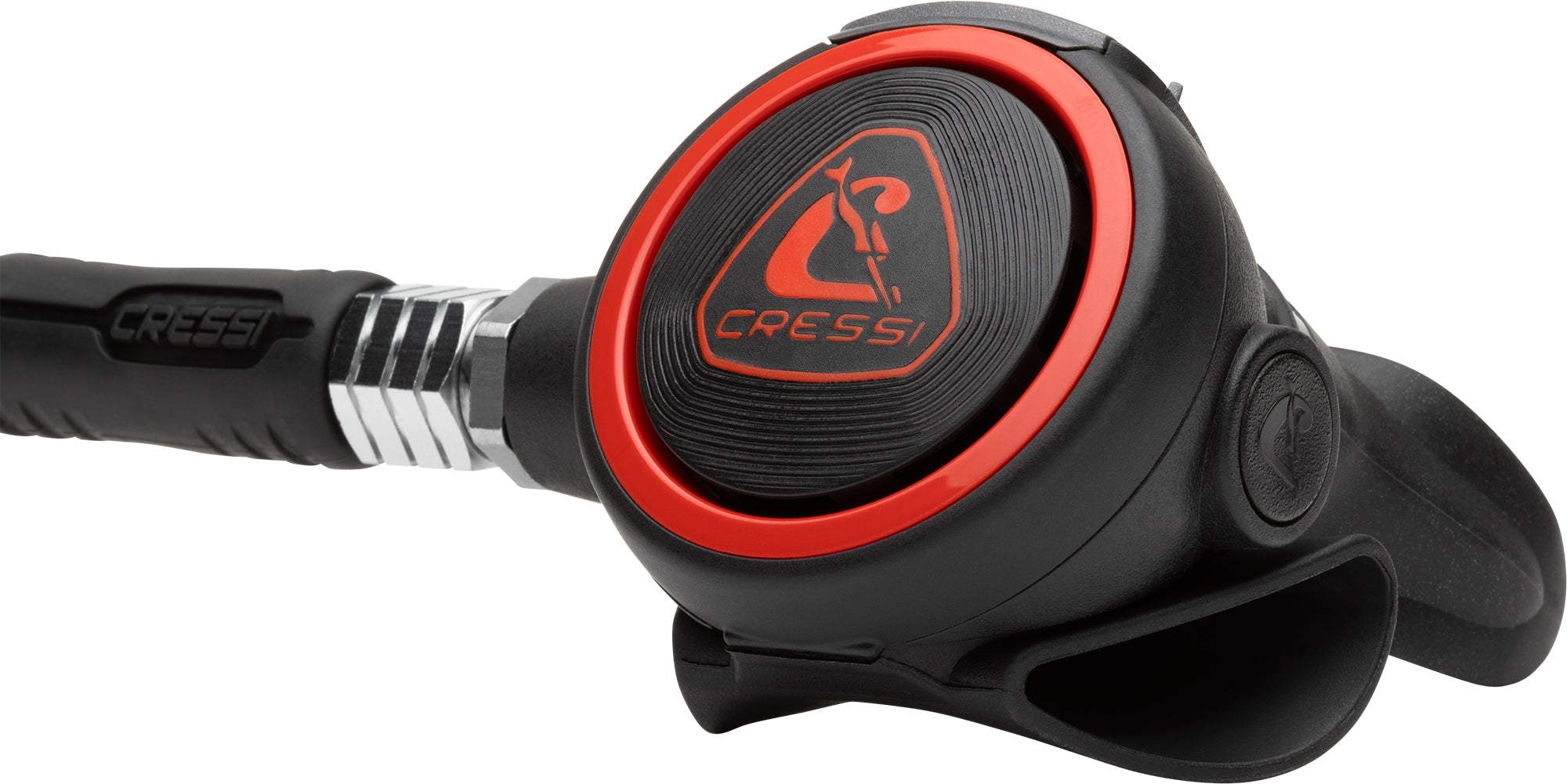

TECHNICAL FEATURES 2ND STAGE
- Downstream system
- Adjustable Venturi effect
- Patented antifriction lever
- Dual-injection, enlarged purge button
- Radial pressure transmission openings
- Anti-scratch surface
- Bayonet-type cap holder with security lock
- Removable exhaust tee without tools
- Weight without hose: 149 g
